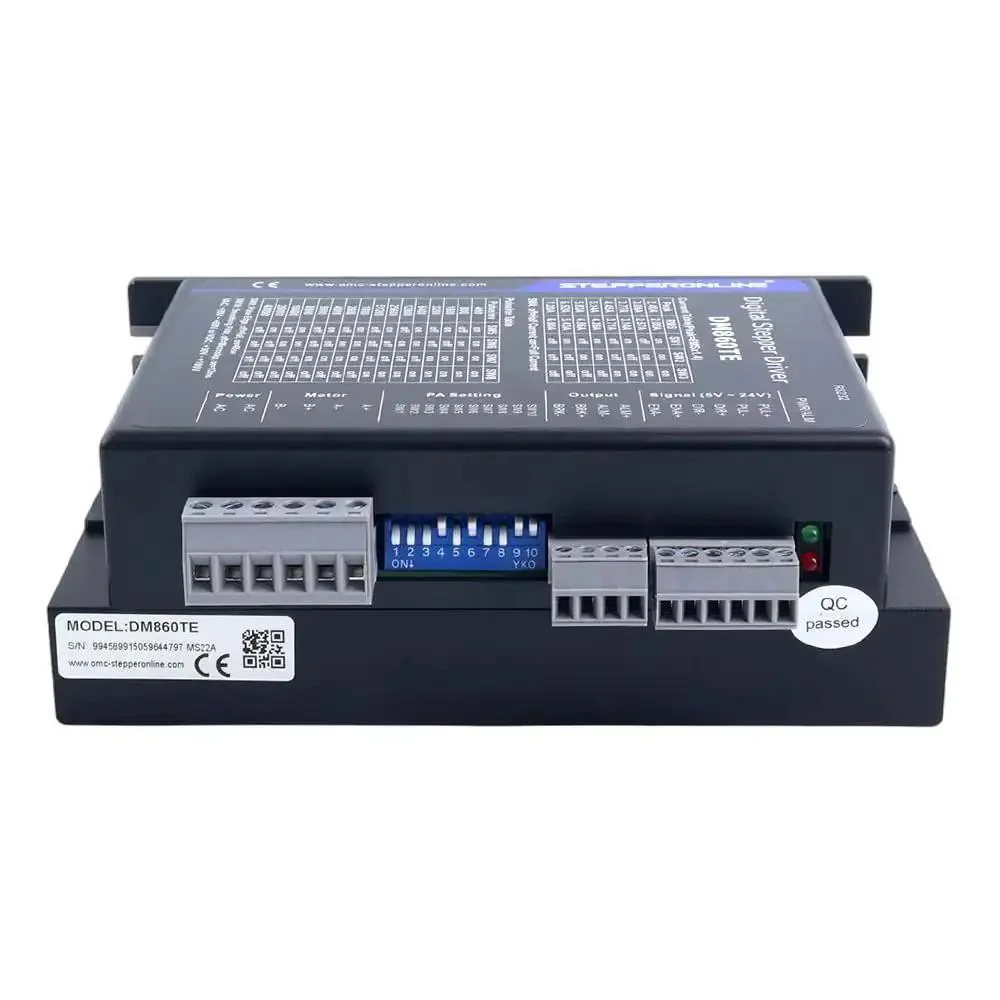

TE Series Digital Stepper Driver For Nema 34 Motors, 2.4-7.2A, 20 To 80VAC And 30 To 100VDC, High Efficiency Motion Controller, Beast Mode Performance, Solid Upgrade With Smooth Precision
✔️ 2.4-7.2A peak current, 20-80VAC/30-100VDC input
The TE Series digital stepper driver is a compact, cost‑effective motion controller designed for Nema 34 motors, delivering precise microstepping and built‑in protection. It’s ideal for CNC, automation, and robotics setups that need smooth motion and reliable performance. Includes 1 x TE Series driver and RS232 cable.
âś… Peak Output Current: 2.4-7.2A (2.0-6.0 RMS)âś… Input Voltage: +20-80VAC / 30-100VDC
âś… Logic Input: 5-24VDC, 7-20mA
✅ Pulse Input: up to 200kHz, 2.5µs width, TTL compatible
âś… Optically Isolated Inputs 5-24V
âś… PUL/DIR and CW/CCW modes
âś… Motor Winding Open Circuit Detection
âś… Automatic Idle-Current Reduction
âś… Soft-start with no jump on power-up
âś… Anti-Resonance for stable torque
âś… 8 selectable peak currents: 2.4-7.2A
âś… 16 selectable microstep resolutions up to 40000
✅ Supports 2‑phase and 4‑phase motors
âś… Over-voltage / Over-current protection
âś… Pulse Input Frequency 0-200kHz
âś… Cooling: Natural or Forced
✅ Operating Temp 0-40°C; Storage -20-65°C
đź’ˇ What is a digital stepper driver used for in CNC and automation?
It translates control signals into precise motor motion and adds built‑in protection and configuration options for different motors.
- Converts control signals into accurate stepping and torque control
- Provides microstepping for smooth movement and precise positioning
- Includes fault protection like over-current and open-circuit detection
- Offers optically isolated TTL inputs to ease system integration
