Table Mat Grounding Kit With Universal Snap Kit And 15 Foot 1M Ohm Ground Cord For ESD Safe Work Surfaces Works With 10mm Snap Or Stud Mats ANSI ESD S2020 Compliant Low Profile Grounding Solution
✔️ Single kit for 10 mm snap mats; up to 0.375 in thick; banana jacks

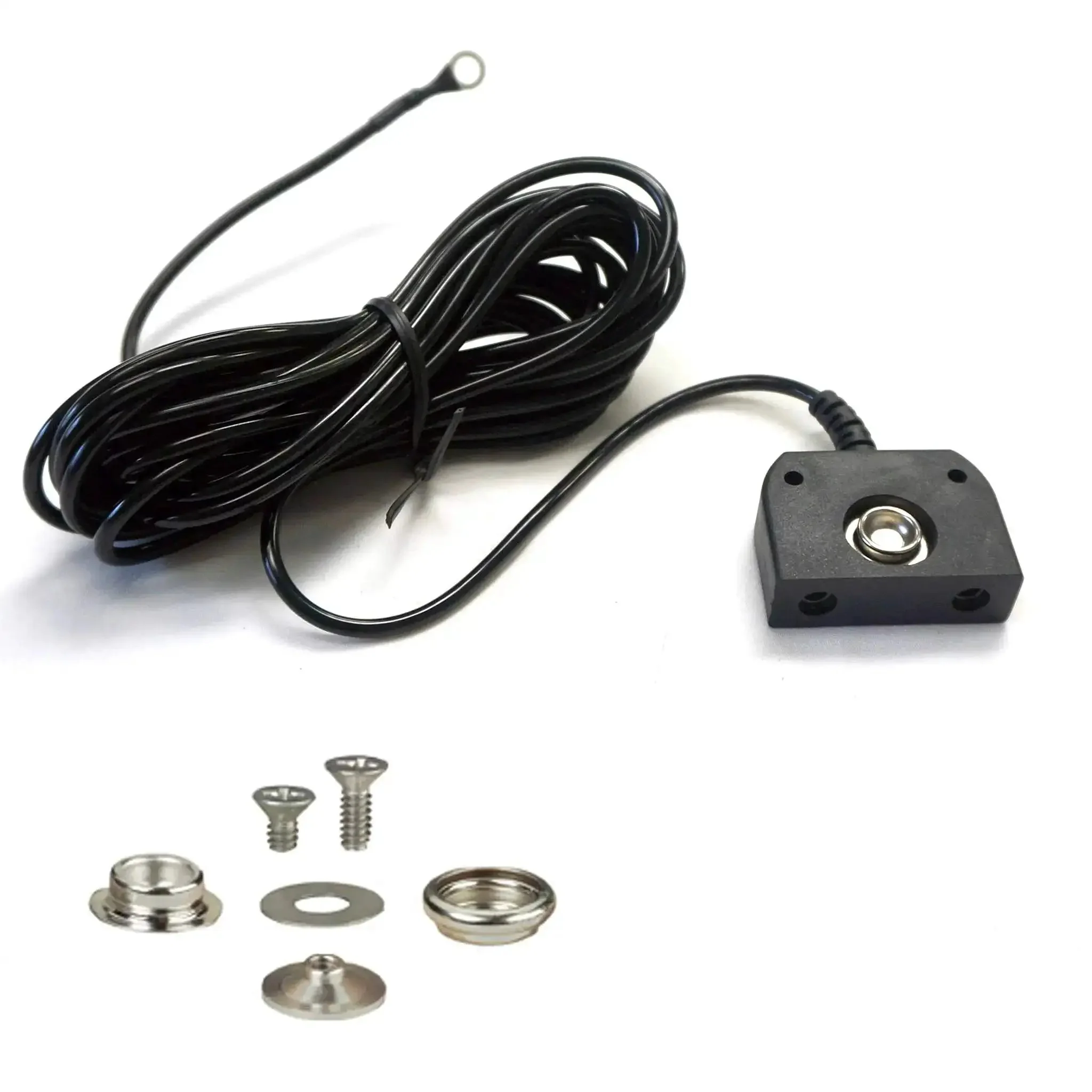

This complete grounding solution provides a straightforward way to install and ground ESD and anti-static table mats at workstations. It supports mats with 10 mm snap or stud installations in materials up to 0.375 inches (9.5 mm) thick, and includes a low-profile ground cord to connect to a central grounding point.
✅ Grounding kit includes a 15 ft Common Point Ground Cord with dual banana jack receptacles✅ Works with mats up to 0.375 in (9.5 mm) thick via 10 mm snap or stud
✅ Buried 1 MΩ resistor for safety per ANSI ESD-S20.20
✅ Cord provides dual banana jack receptacles for two operators
✅ Low-profile design minimizes interference at the workstation
💡 What is a table mat grounding kit used for in ESD safe workstations? This handy setup provides a reliable, single grounding point per mat and lets two operators stay grounded at the same station. - Provides a dedicated ground path for mats to prevent static buildup - Grounds two operators via banana jack receptacles at the same station - Complies with ANSI ESD-S20.20 and ANSI/ESD S-6.1 with a 1 MΩ resistor
