Single Ended Output Audio Transformer For Tube Amp 5K Primary 5W Secondary 0 Ohm 4 Ohm 8 Ohm Compatible With 6P1 6P14 6P6 Tubes 19X26mm Core 70mm Mounting Black Lacquer Shield For Old School Vintage HiFi Amplifiers

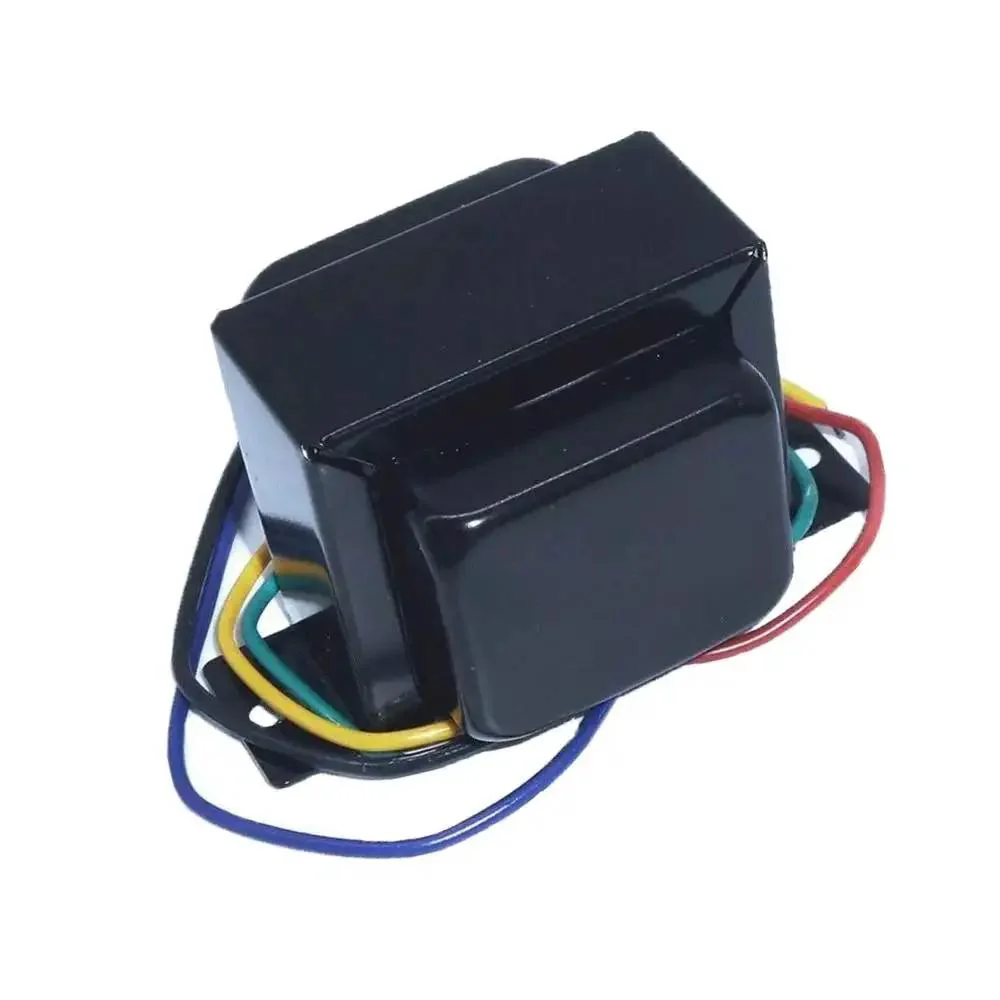

1 pc pack: single-ended audio transformer for vintage amps
✔️ 5K primary, 0-4-8 Ω taps, 19x26 mm core, 70 mm mount

This single-ended audio transformer is built for vintage tube amplifiers, providing a straightforward way to match speaker loads with a 5K Ω primary and 0-4-8 Ω secondary taps. It’s a handy fit for older HiFi amps using 6P1, 6P14, or 6P6 tubes, with a compact 19x26 mm core and a 70 mm mounting pattern.

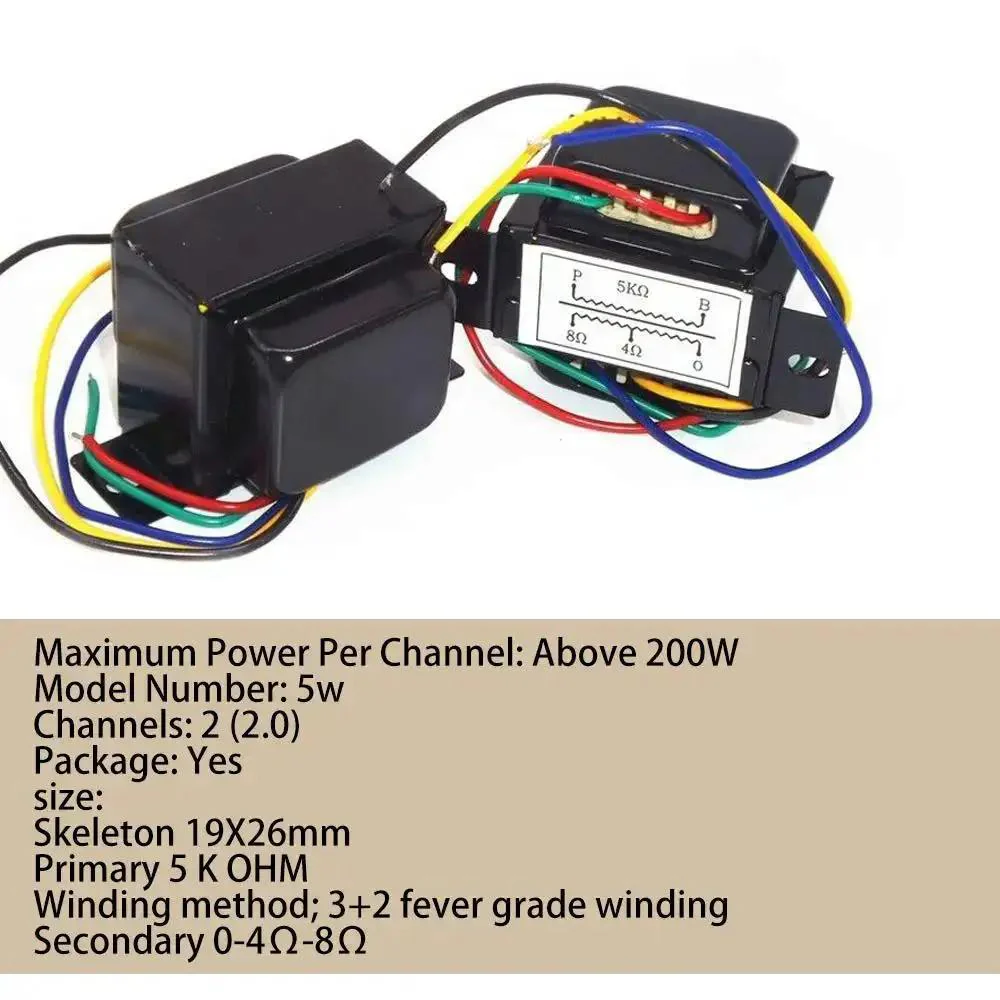

✅ Primary 5K Ω; Secondary 0-4-8 Ω taps; 5 W
✅ Winding method: 3+2 fever grade winding
✅ Core: 19x26 mm skeleton; Long 60 mm; Width 55 mm; High 50 mm
✅ Mounting: 70 mm center distance; black lacquered shielded shell
✅ Weight: approx 0.6 kg each
✅ Shielding: black lacquered iron shell fully shielded
✅ Package: 1 piece

💡 What is a single-ended output audio transformer used for in vintage tube amps and how do the primary/secondary specs help compatibility? This handy device matches tube amp outputs to loudspeakers and ensures proper impedance balance.
- Impedance matching for vintage tube amps
- 5K primary with 0-4-8 Ω secondary taps provides flexible speaker compatibility
- Shielded, compact core fits old chassis
- 19x26 mm core and 70 mm mounting spacing simplify installation
