Rugged 2.2kW Variable Frequency Drive VFD For 120V To 220V Single Phase And 3 Phase Motors Easy Terminal Wiring Big Heat Sink Anti Trip Protection Smooth No Nonsense Speed Control For Industrial AC Motors

Rugged 2.2kW VFD for 120-220V motors, single unit heat sink
✔️ 2.2kW VFD; 120V-220V input, single/3-phase, PWM control

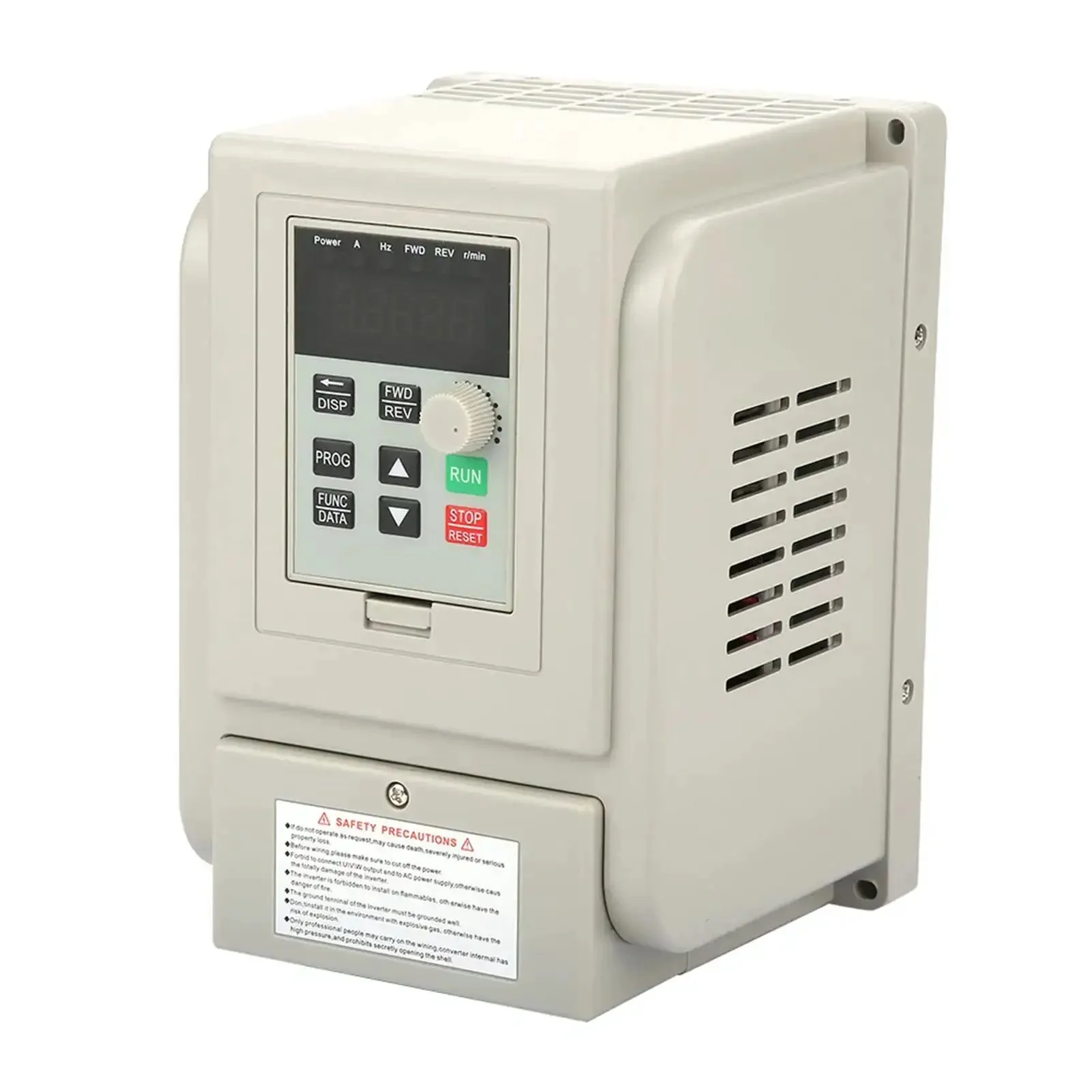

The AT1-2200X is a rugged VFD designed to drive AC motors in industrial equipment, especially where space is tight and wiring must be simple. It supports single-phase and three-phase 220V systems, with a large heat sink and built-in protection for reliable operation in dirty, hot, or dusty environments.

✅ Model: AT1-2200X
✅ Power Source Phase: Single-phase
✅ Rated Voltage: 220V AC
✅ Suitable Motor Power: 2.2kW
✅ Output Frequency: 400Hz
✅ Output Voltage Adjusting Method: PWM control
✅ Rated Current: 12A
✅ Protection: Over-current, over-voltage, over-heat, under-voltage, short circuit

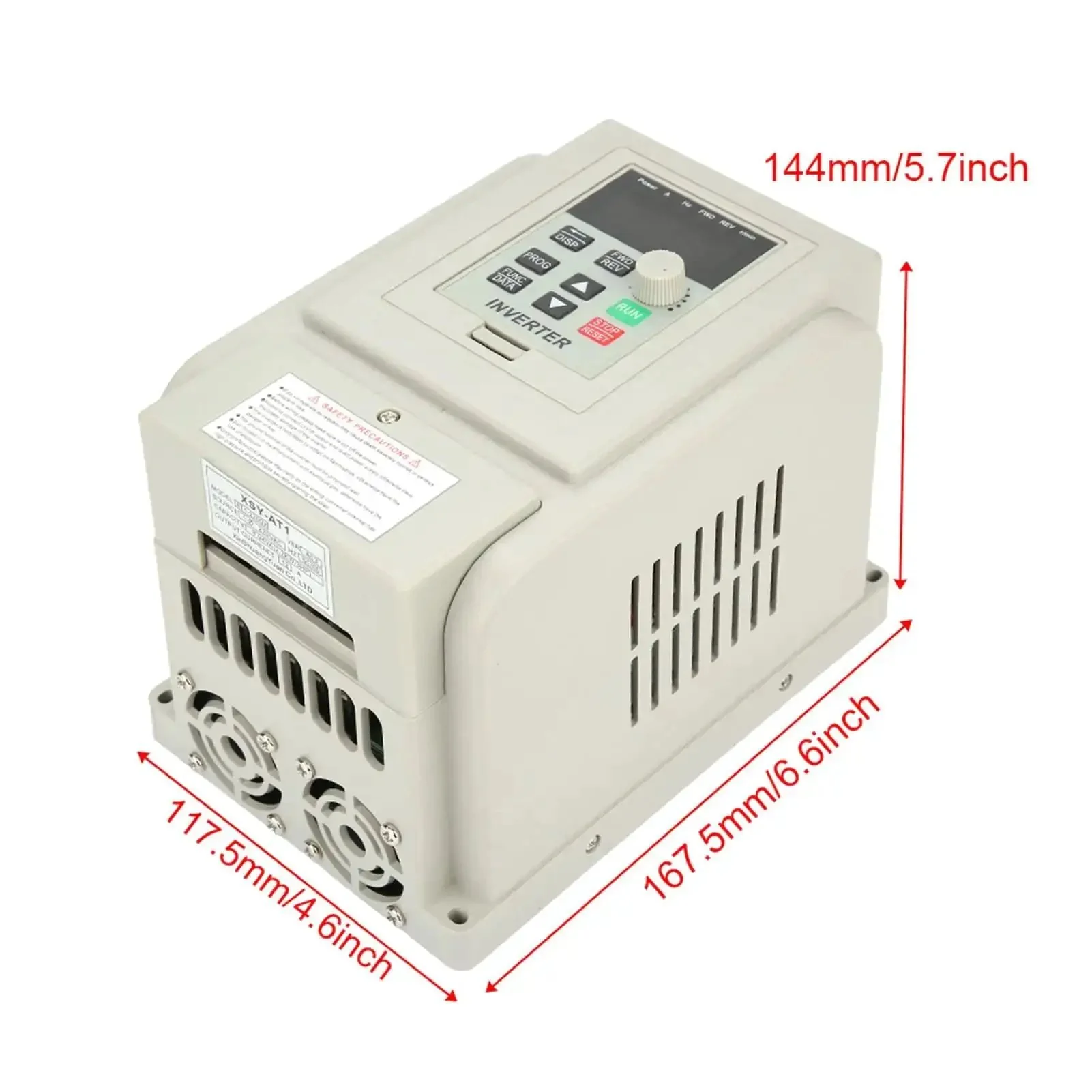

✅ Size: 117.5 x 167.5 x 144 mm (4.6 x 6.6 x 5.7 in)
✅ Built-in filter

💡 What is a motor drive like a VFD used for in industrial settings? A VFD adjusts motor speed by varying input frequency for better control and efficiency. - Accurate speed control for pumps, fans, conveyors - Energy savings via soft start and ramping - Extended motor life through smooth torque delivery
