Rotary Switch Four Position Three Speed Power Selector With Knob For Heaters And Equipment 13A 125V 10A 250V Latching Action ABS Plastic Housing Includes Nuts And Knobs Pack Of Two

Four-Position Rotary Switch for 3-Speed Power Control
✔️ 4-position, 3-speed latching switch, ABS housing, 13A@120VAC/10A@250VAC

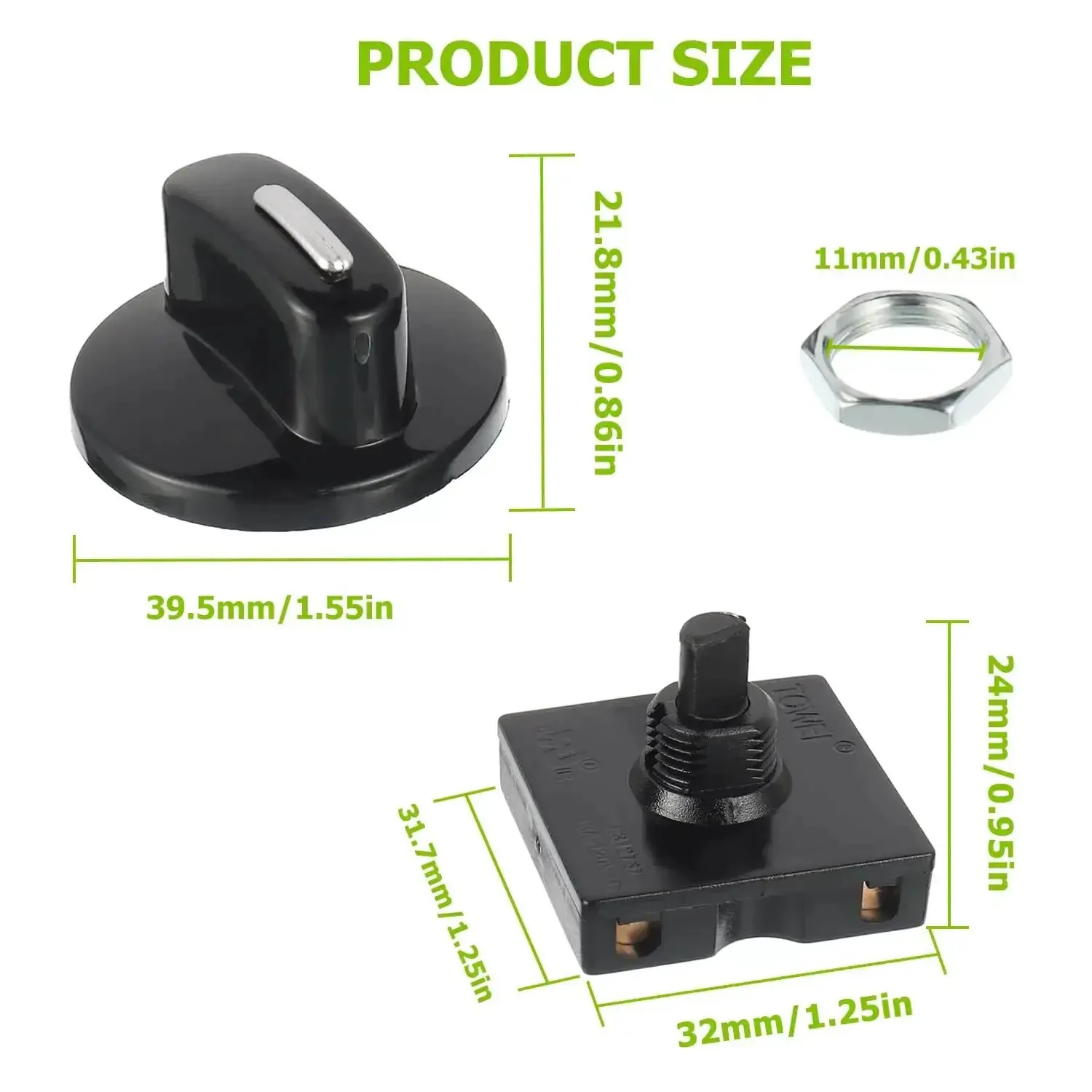

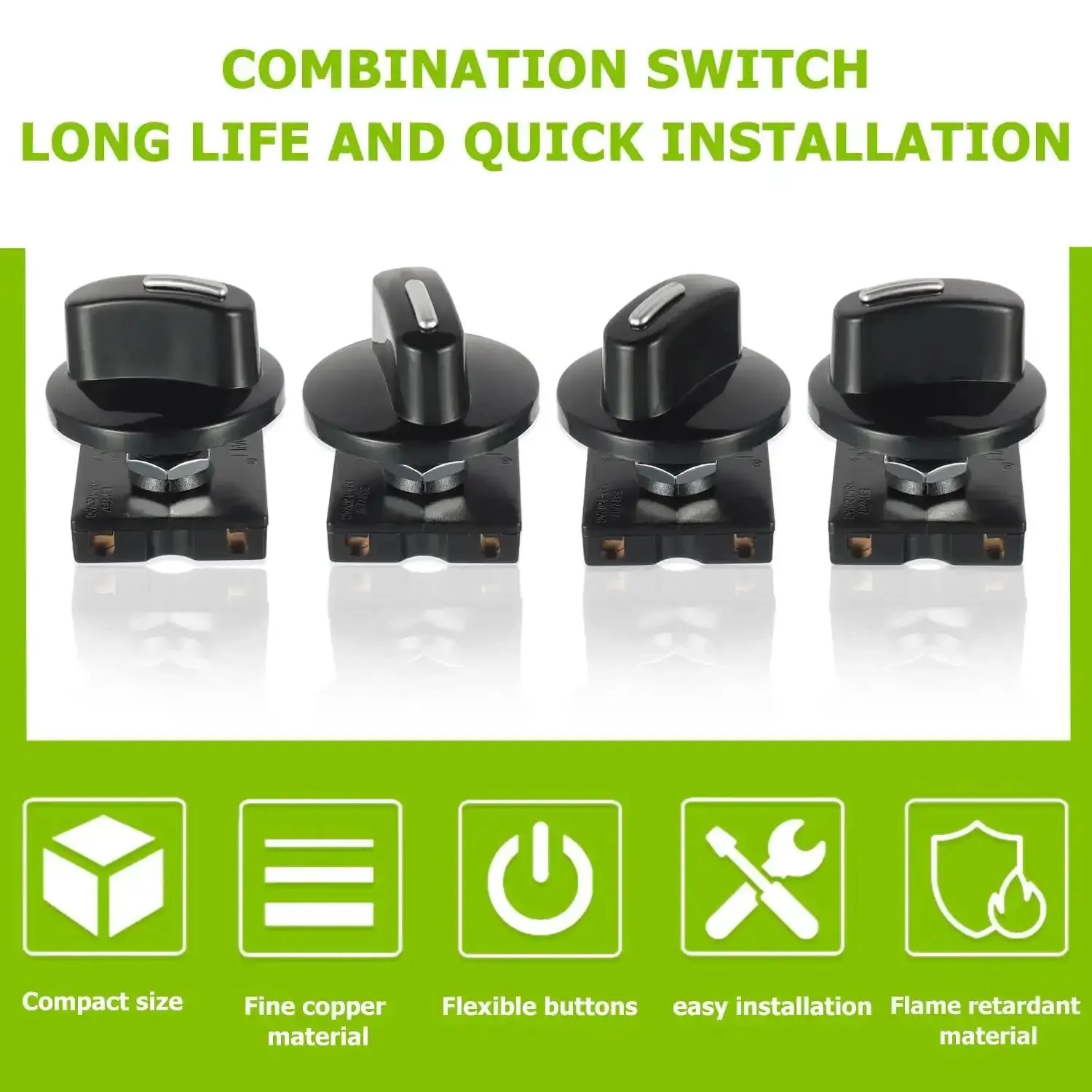

Compact B3200 series rotary switch with four positions and three speeds. It uses a latching action and has a flame-retardant ABS housing. Each pack includes mounting nuts and knobs for easy installation, making it ideal for control panels on heaters, fans, and other appliances.

✅ Model: B3200 series

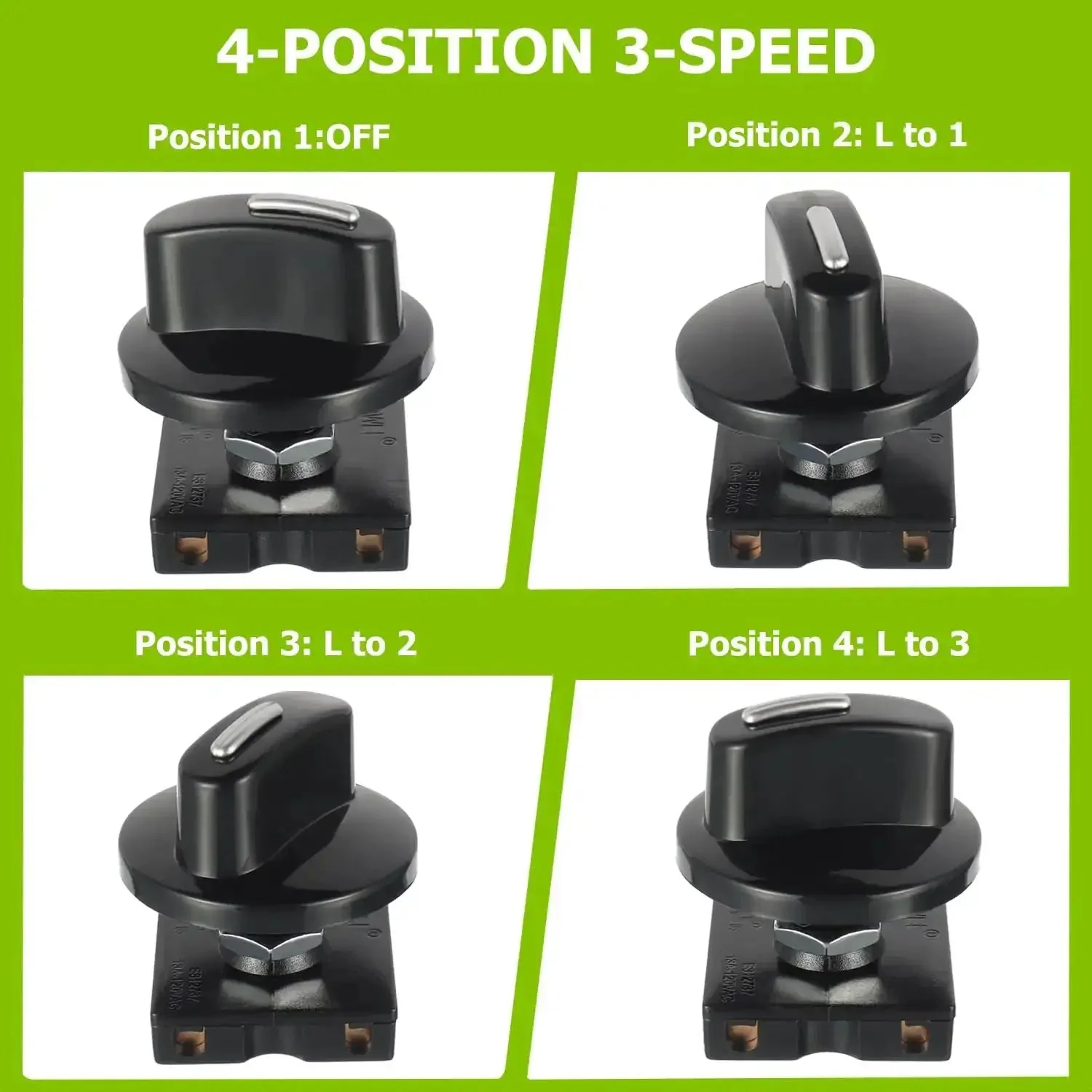

✅ Gear position: 4-position, three-speed rotary switch
✅ Material: ABS flame retardant housing
✅ Electrical life: 10000 cycles; Mechanical life: 10000 cycles
✅ Rated voltage/current: 13A at 120VAC or 10A at 250VAC
✅ Endurance: withstand voltage 1500 VAC; insulation resistance 100 MΩ

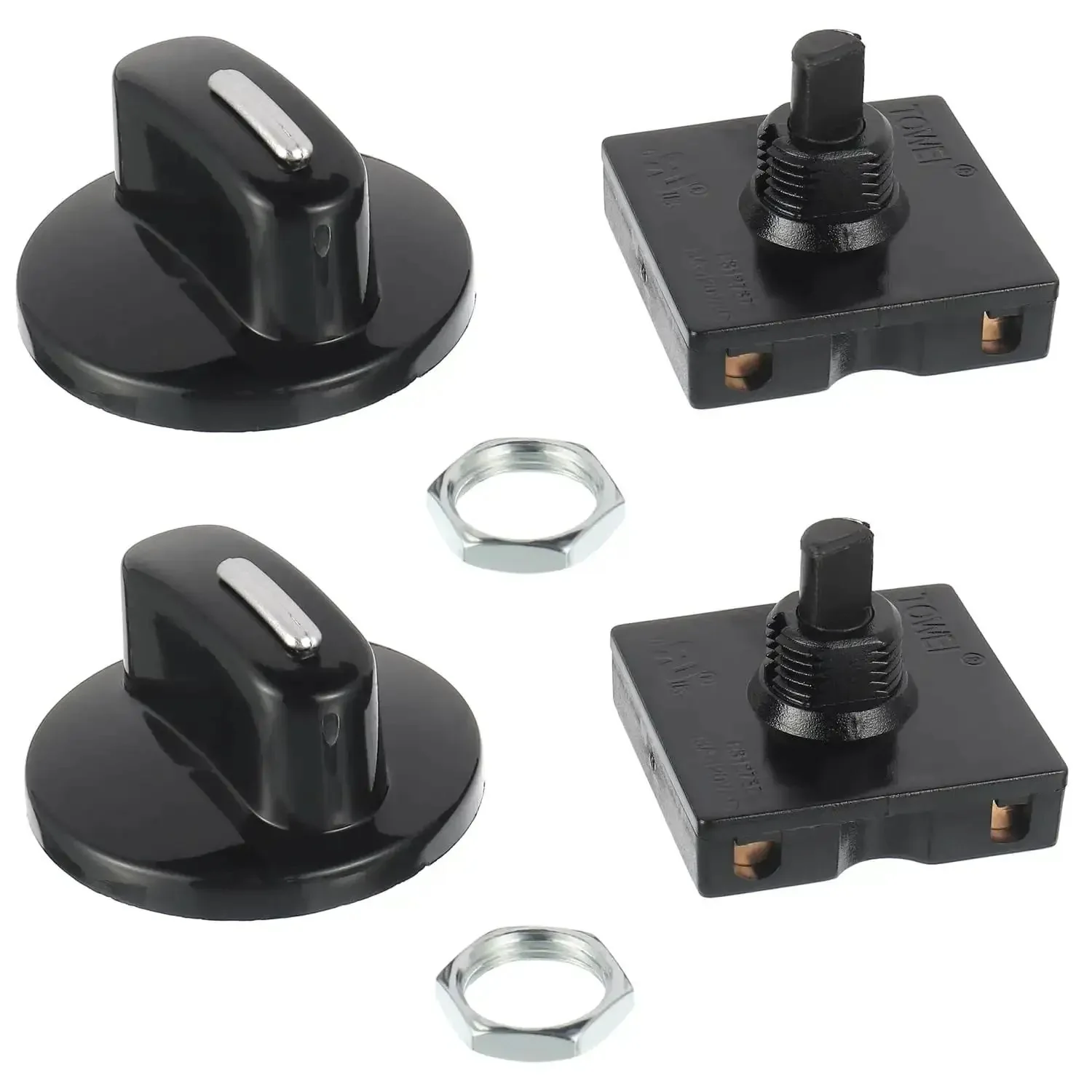

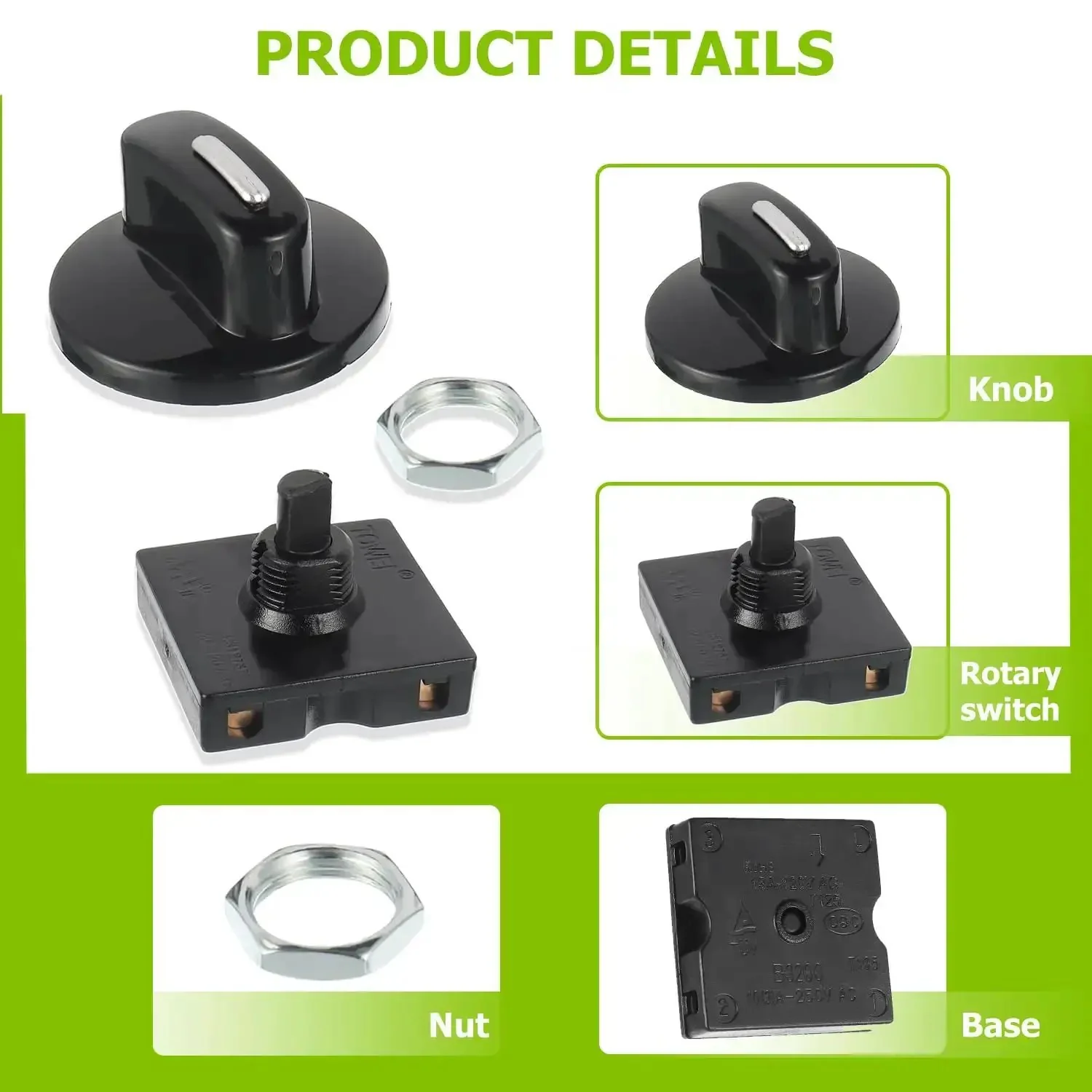

✅ Pack includes 2 x Rotary Switch, 2 x Knobs, 2 x Nuts

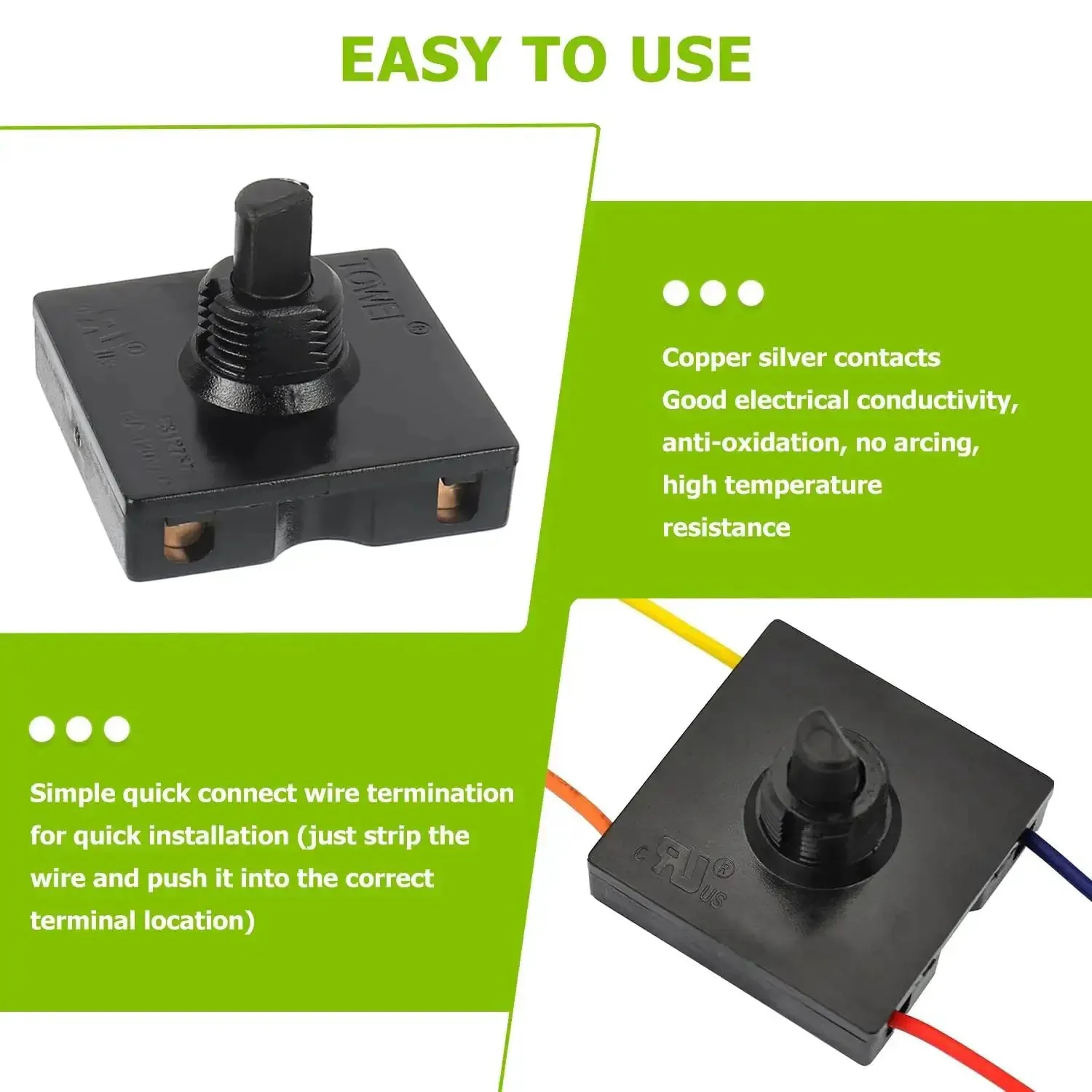

💡 What is a rotary switch used for in power control applications? A handy device for selecting power levels on appliances. - Handy for heaters, fans, range hoods, and humidifiers - Great for controlling multiple speed levels with a single control - Simple wiring and secure mounting on control panels
