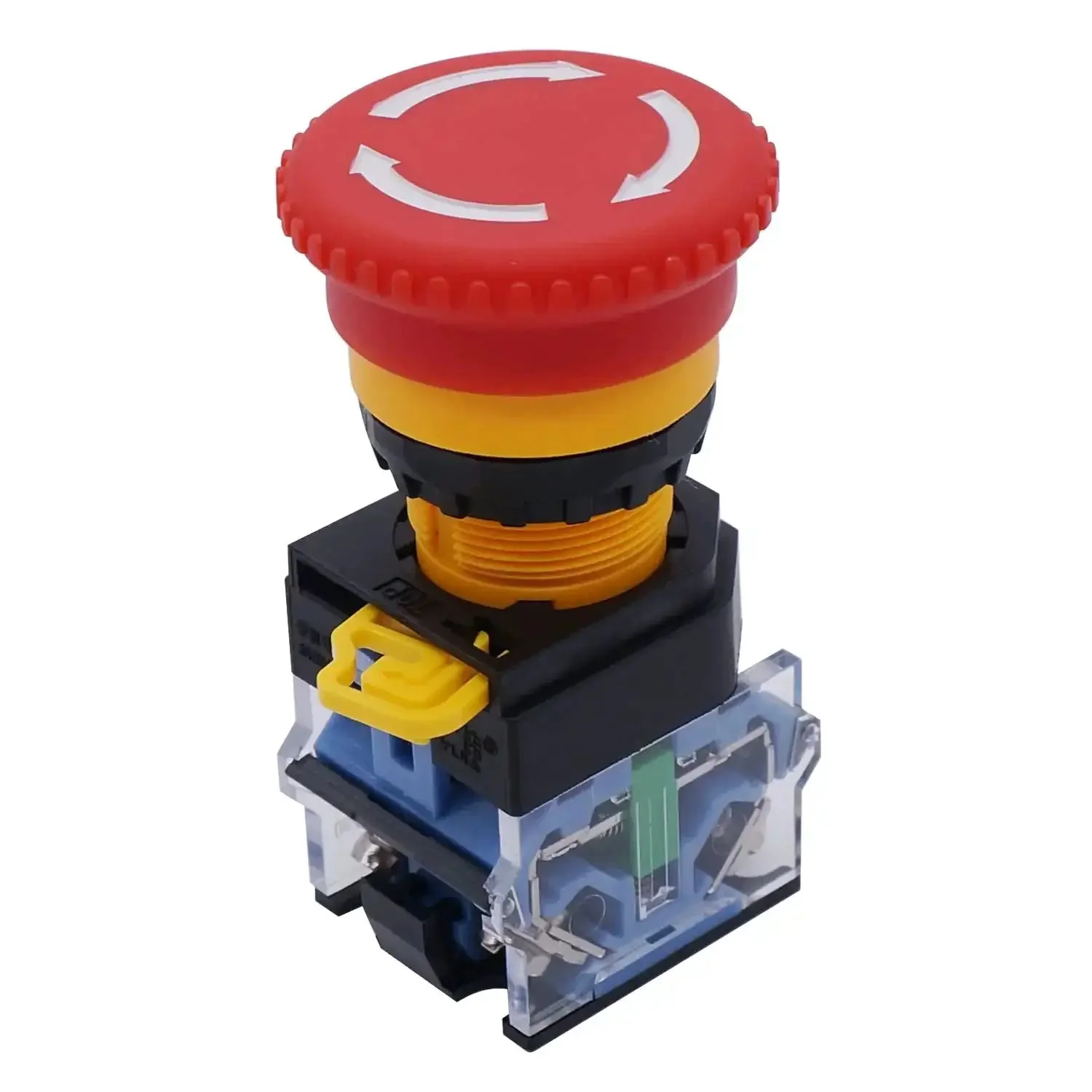

Red Mushroom Emergency Stop Push Button Switch, Self-Locking Latching Rotary, 3 Positions, 2NO, 10A 440V, 1NO 1NC Contacts, Station Box Mount, No Light Function, Heavy Duty Red Stop Button for Industrial Control and Selector Applications

Heavy-Duty 3-Position Emergency Stop Button, 10A 440V
✔️ 3-position selector, self-locking, 10A @ 440V, 4 terminals

This heavy-duty emergency stop push button is designed for industrial control panels and machinery, offering a self-locking rotary action and a three-position selector. It mounts in a station box and has no illumination function, making it ideal for harsh environments where reliability matters.

✅ Contacts: 1NO 1NC for stop circuit
✅ Selector: 2 NO, 3-position, latching
✅ Current rating: Ith 10A, Ui 440V
✅ Terminals: 4 screw terminals for wiring
✅ Mounting: station box mount, heavy-duty red mushroom cap

Dimension	Metric	Imperial
Overall size (L×W×H)	194 × 70 × 64 mm	7.6" × 2.7" × 2.5"
Button diameter (Red Mushroom)	40 mm	1.57"
Button diameter (Red/Green)	29 mm	1.14"
Weight	400 g	0.88 lb

💡 What is an emergency stop push button used for in industrial control panels? A handy safety device for quickly halting equipment in hazardous situations. - Quick shutdown to prevent damage or injury - Clear tactile feedback and visual cue for operators - General use in control cabinets and machinery - Works with 3-position selector and lock-out schemes
