L298P Shield R3 Motor Driver Module Expansion Board H Bridge 2A For Arduino Uno Mega 2560 Dual DC Motor Driver With Independent Speed And Direction Control For Your DIY Robotics Rig

R3 dual DC motor driver shield for Arduino, 2A per channel
✔️ Dual full-bridge motor control up to 2A per channel, Arduino-ready

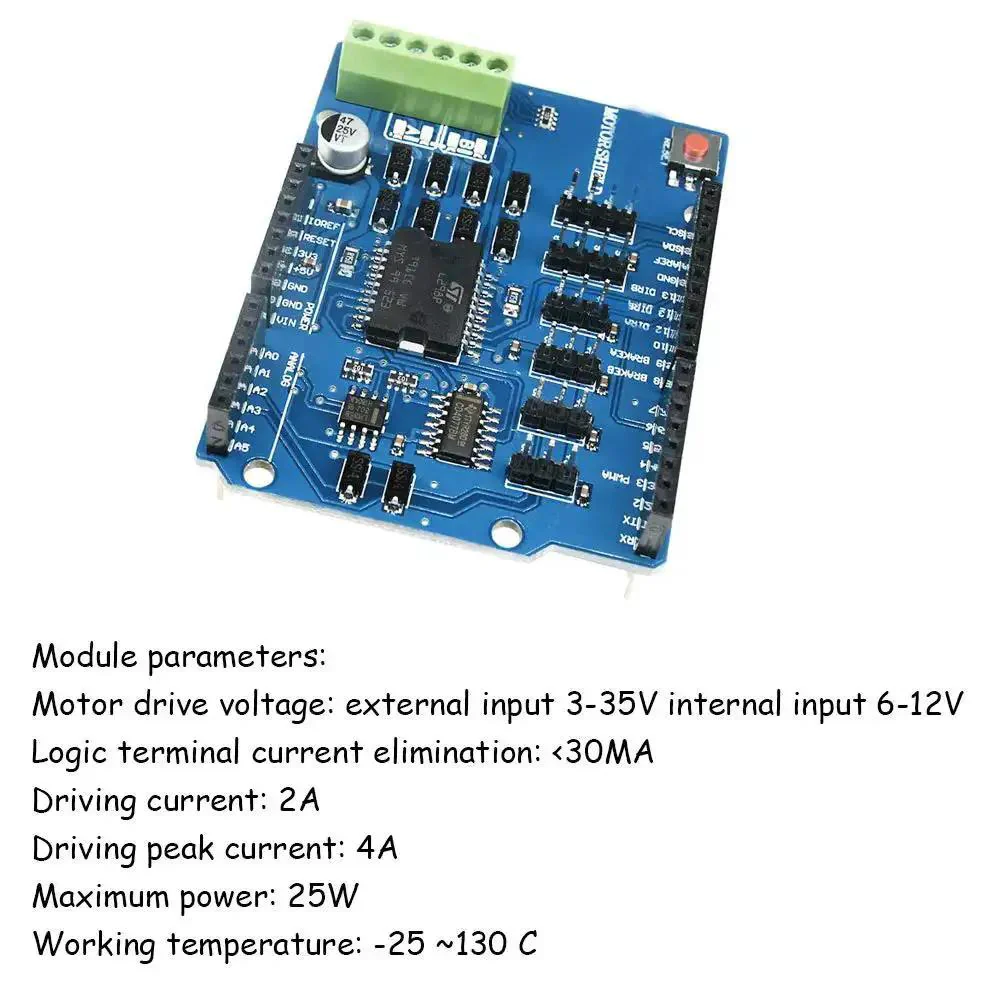

The shield is a L298P-based dual full-bridge motor driver that powers two DC motors with independent speed and direction control. It plugs into Arduino boards like UNO, Mega 2560, and Leonardo, making DIY robotics quick and simple. Use external power supply 3-35V, while logic runs at 6-12V.

✅ Compatible with Arduino UNO, Mega 2560, and Leonardo boards for easy plug-in
✅ Independent speed and direction control for two DC motors
✅ External power supply 3-35V; logic 6-12V
✅ Max 2A per channel; 4A total with external supply
✅ Max power around 25W; handles inductive loads like relays and solenoids
✅ Pin mapping: PWMA D5, DIRA D4, PWMB D6, DIRB D7

💡 Long-tail: What is a motor driver shield used for in Arduino robotics projects?

- Drives two DC motors with independent speed and direction control
- Compatible with Arduino UNO, Mega 2560, Leonardo
- Supports external power 3-35V and logic 6-12V
- Ideal for small robotics, educational kits, and DIY projects
