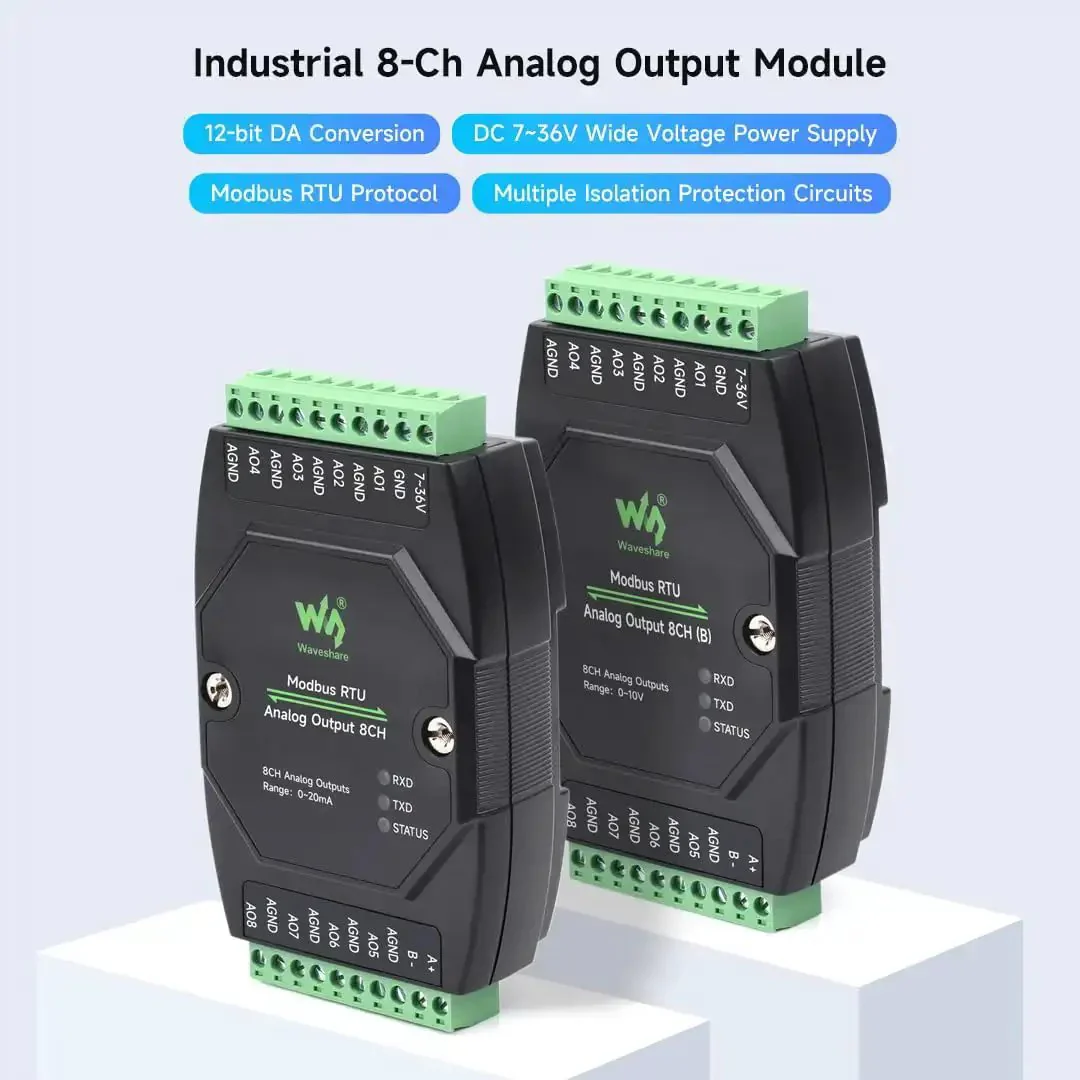

Industrial 8 Channel Analog Output Module With 12 Bit DAC And 8 Simultaneous Current Outputs, Rugged Industrial Grade, Wide 7 To 36 V DC Power, Modbus RTU Protocol, RS485 Ready, Rail Mount, Isolated Power, Cascadable Addresses 1 To 255

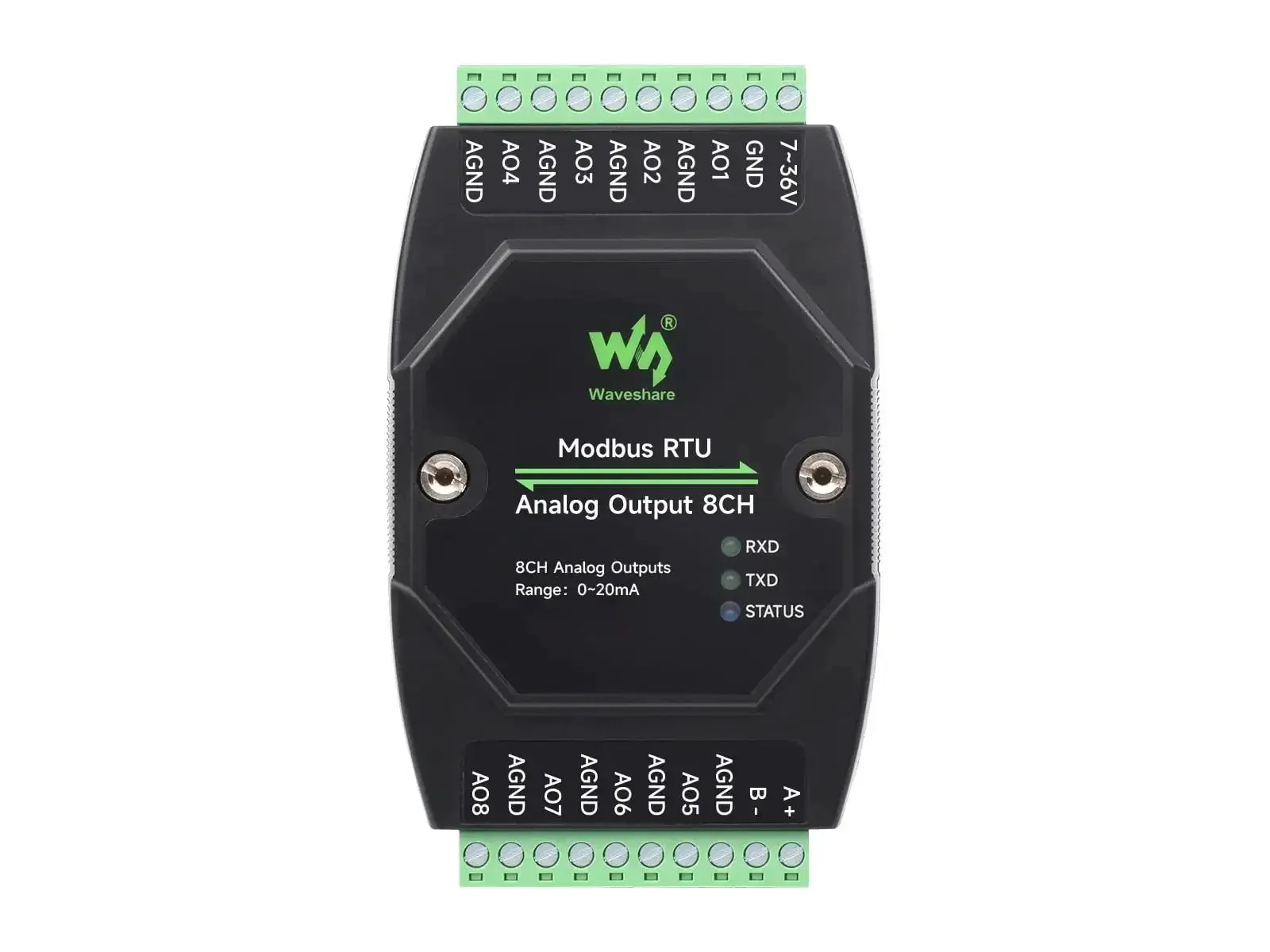

8-Channel Analog Output Module with 12-Bit DAC - Single Unit
✔️ 12-bit DAC outputs, RS485 cascade, 7-36V power, isolated

Rugged industrial-grade 8-channel analog output module designed to precisely drive actuators and analog devices in automation and process-control systems. It supports Modbus RTU over RS485, cascadeable addresses from 1 to 255, and onboard isolation and protection for reliable operation in noisy environments.

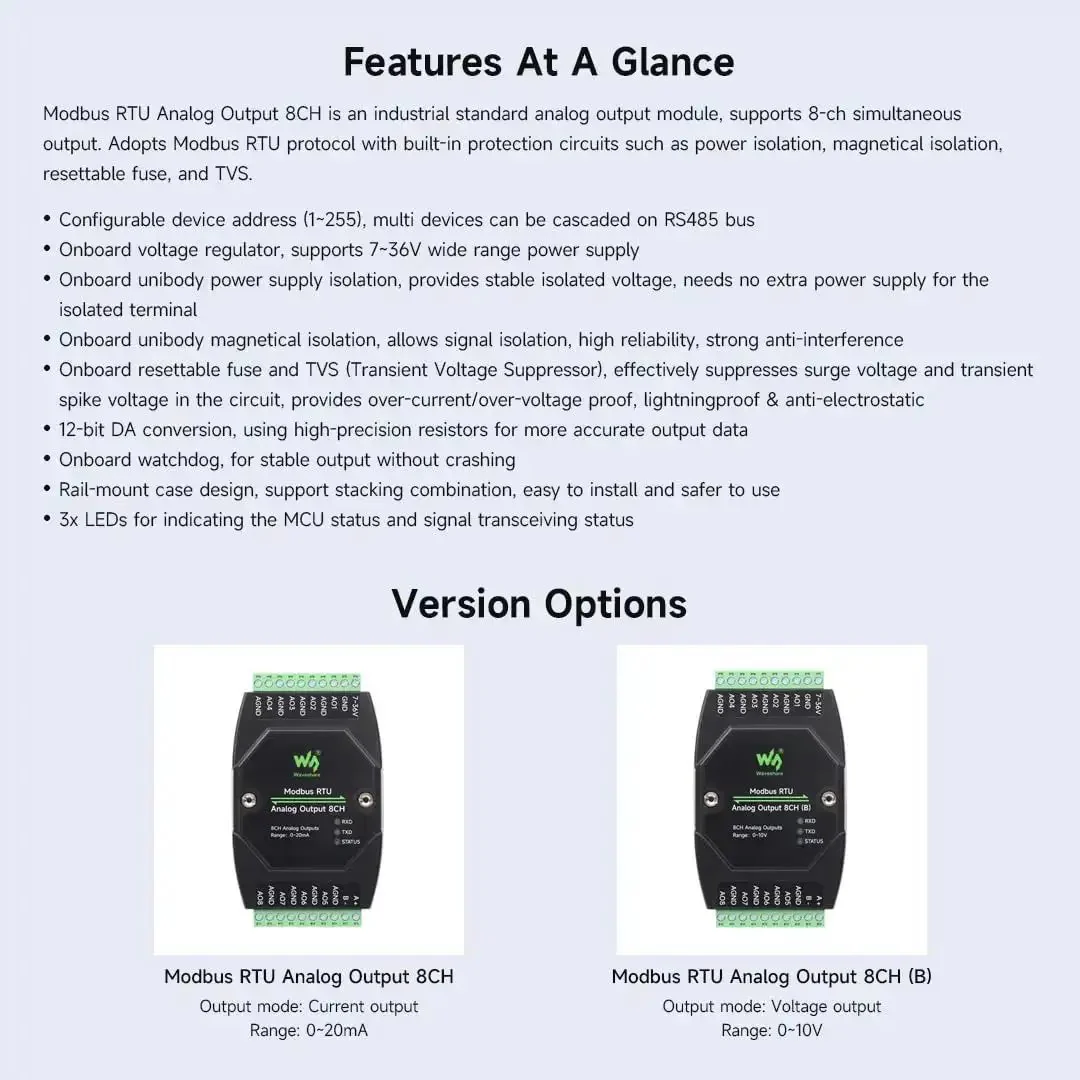

✅ 8 simultaneous current outputs with 12-bit DAC for tight control

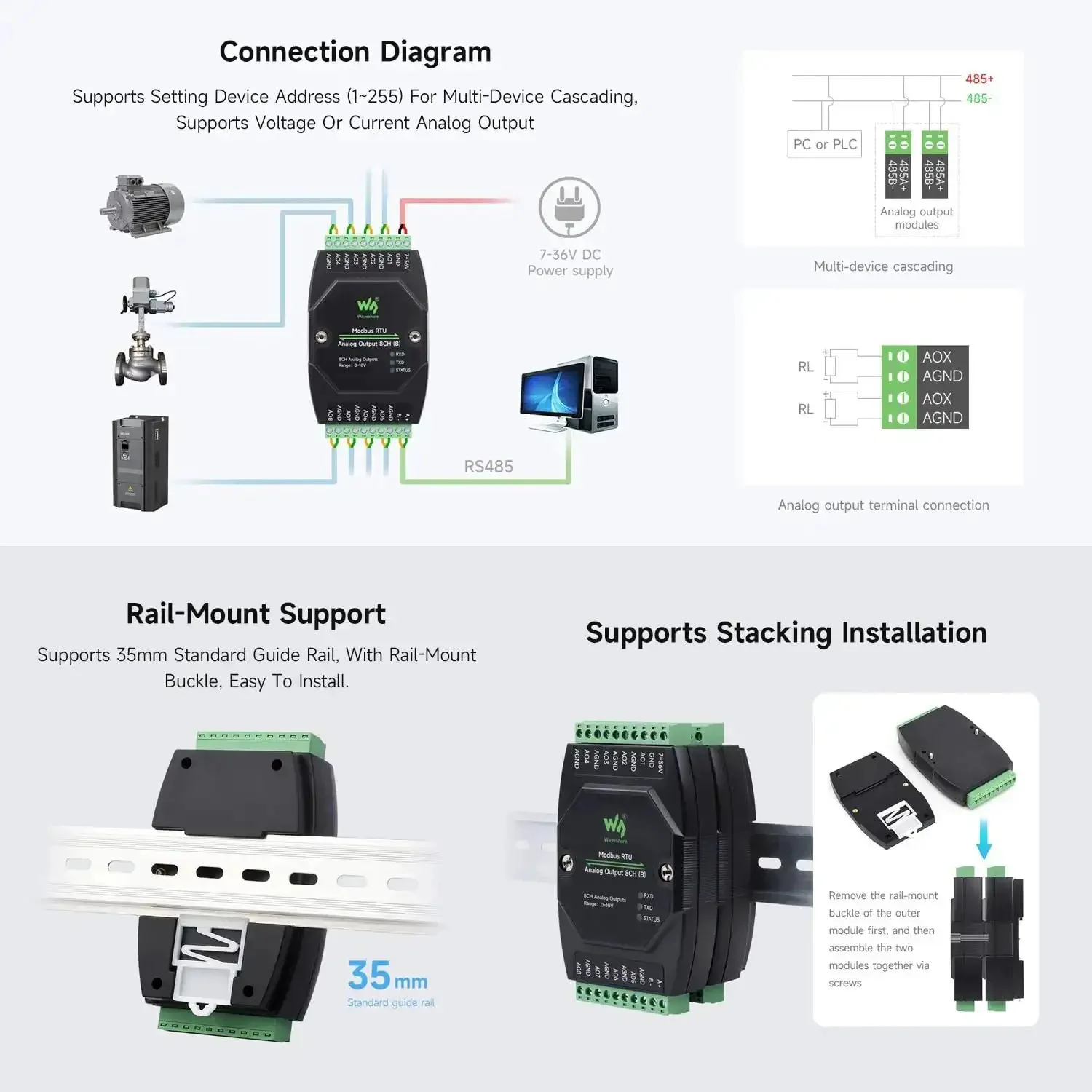

✅ RS485 Modbus RTU with cascaded addresses 1-255
✅ Onboard 7-36V wide-range power supply with isolated power

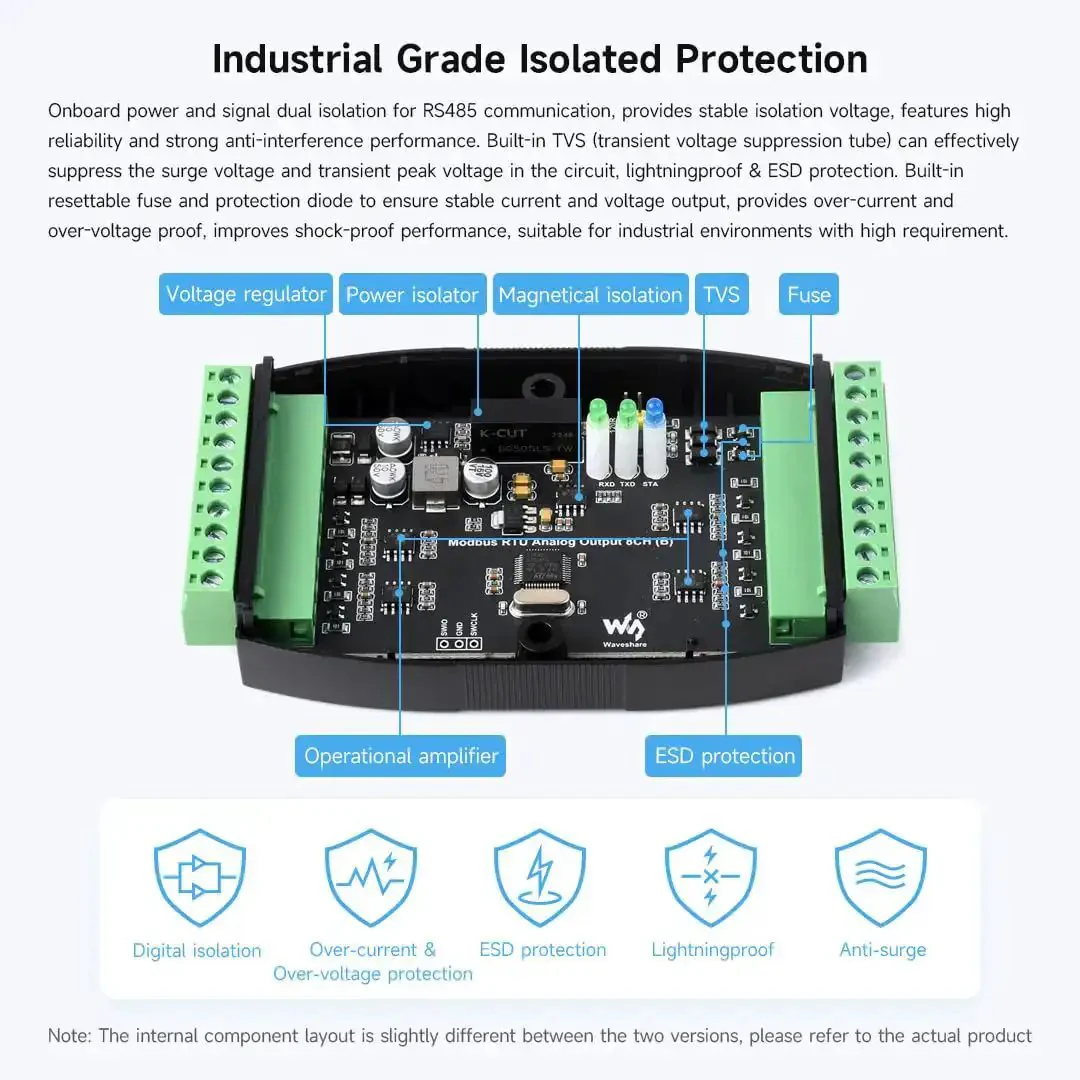

✅ Onboard signal and power isolation plus resettable fuse and TVS
✅ Rail-mount rugged enclosure for safe, stackable installation

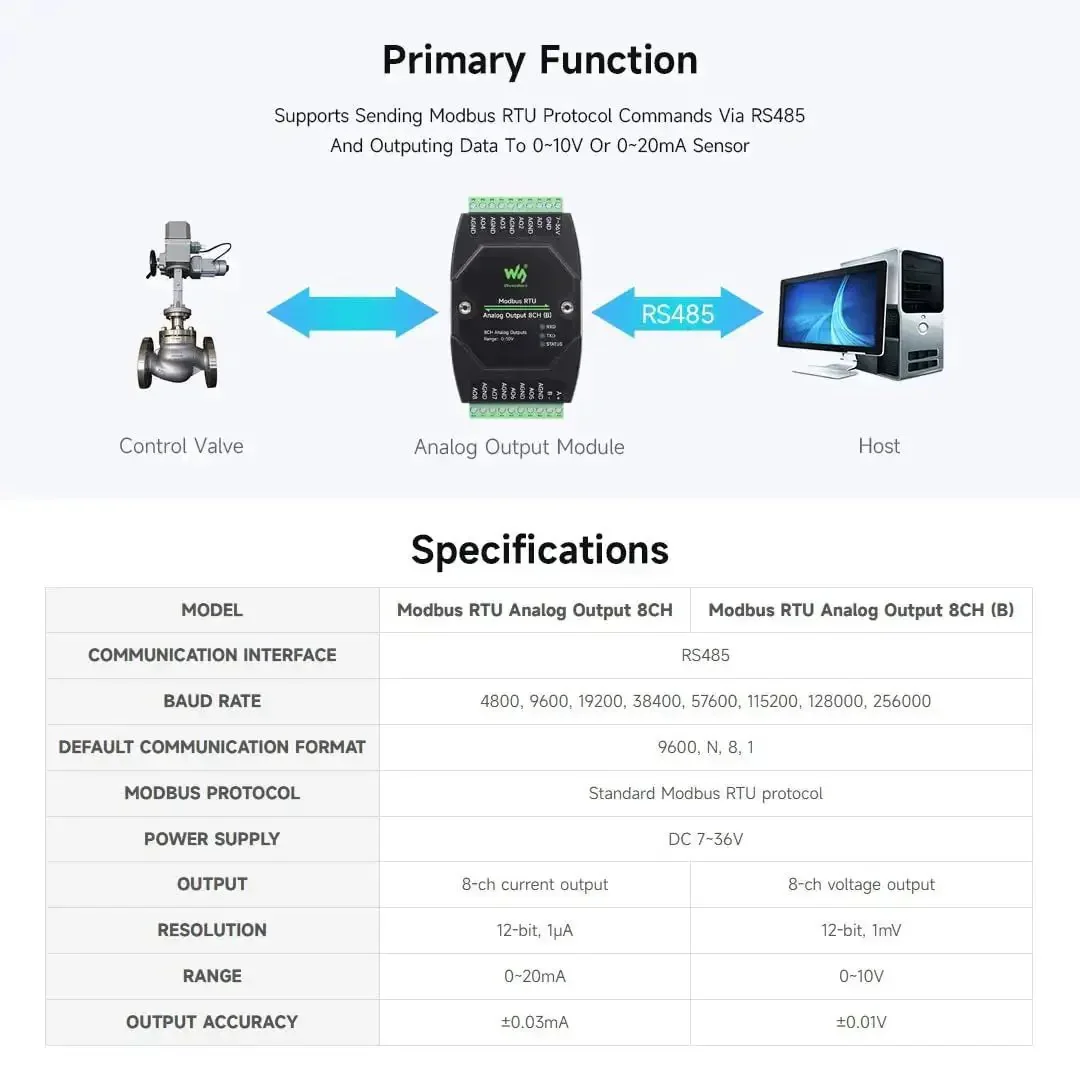

💡 What is an industrial analog output module used for in control systems?

A handy option for driving multiple analog devices from a single controller while reducing noise and protecting sensitive electronics.

• Handy for coordinating eight outputs in automation and process control
• 12-bit DAC enables precise voltage/current regulation on each channel
• RS485 interface supports cascade addresses for scalable setups
• Wide input range (7-36V) with isolation diminishes power and noise problems
