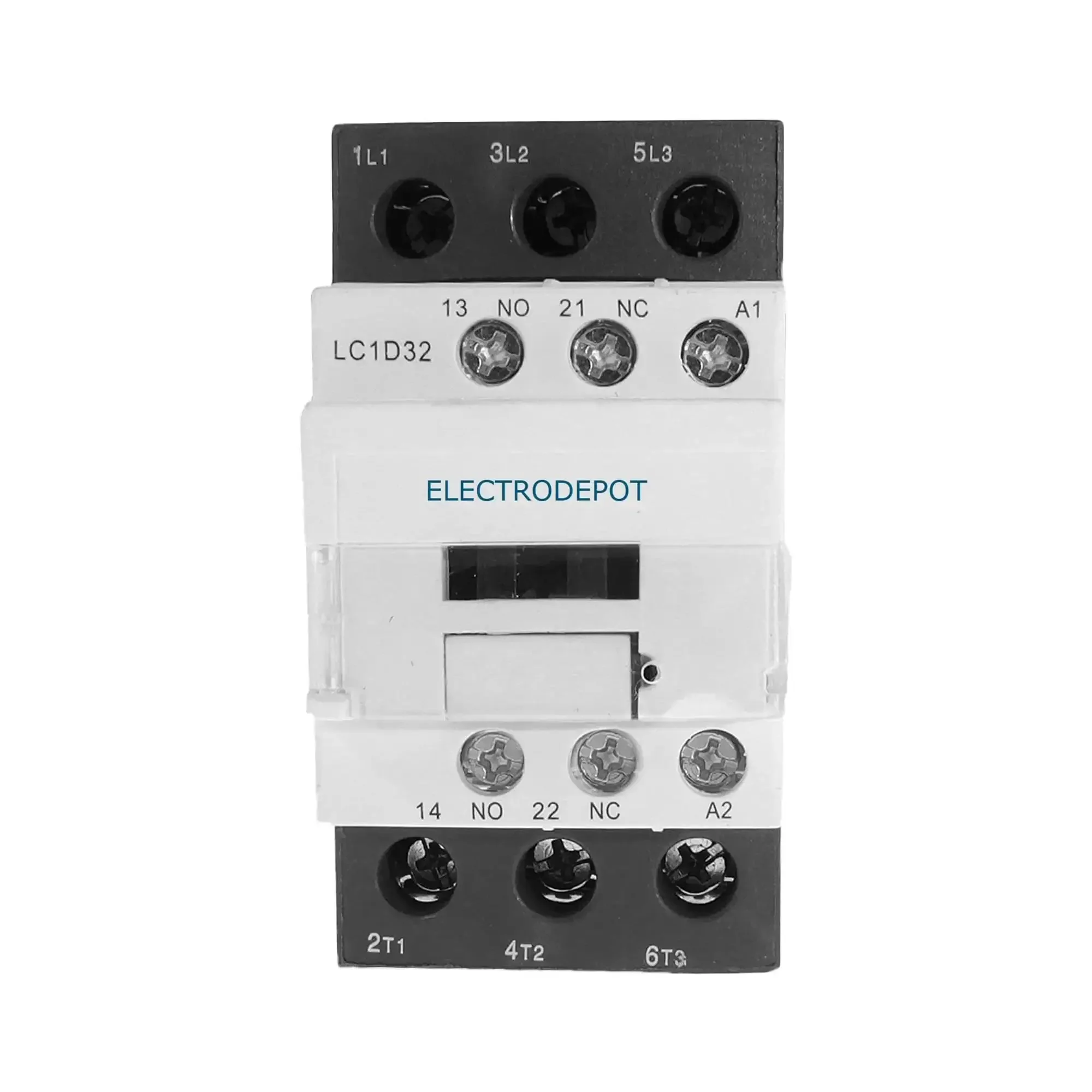

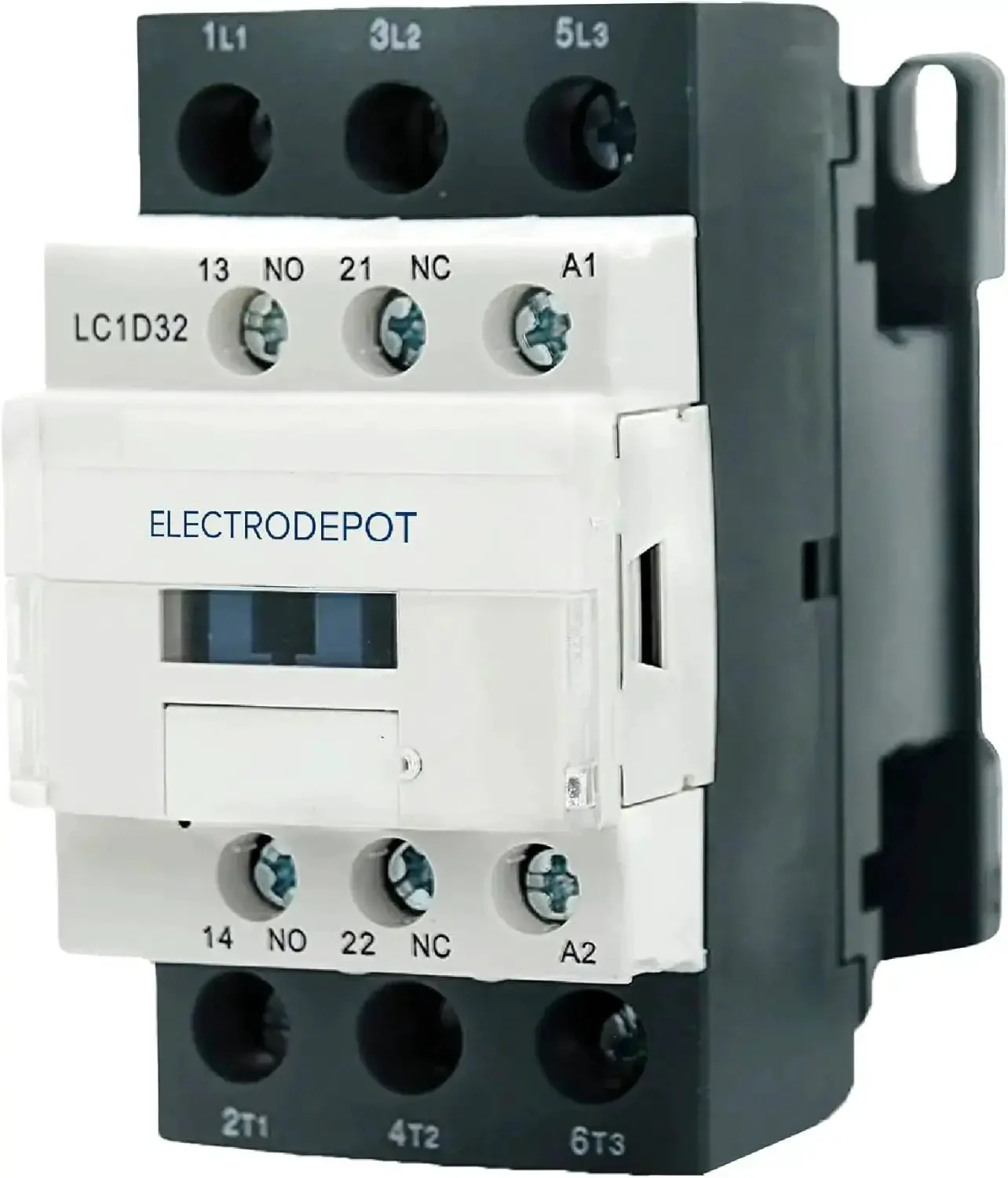

Heavy Duty Three Pole 30A Contactor With 110 To 120V Coil For Motors And Lighting, Handles 32A Motor Load And 40A Lighting, 600V IEC DIN Rail Mount, Includes 1NO And 1NC Auxiliary Contact
✔️ 32A motor load, 40A lighting, 120V coil, 1NO/1NC aux, 1pc
This heavy duty three-pole contactor is designed to safely switch motors and lighting in industrial control panels. It is ideal for panel assemblies that require reliable DIN rail mounting, 120V control coils, and clear signaling via a built-in auxiliary contact.

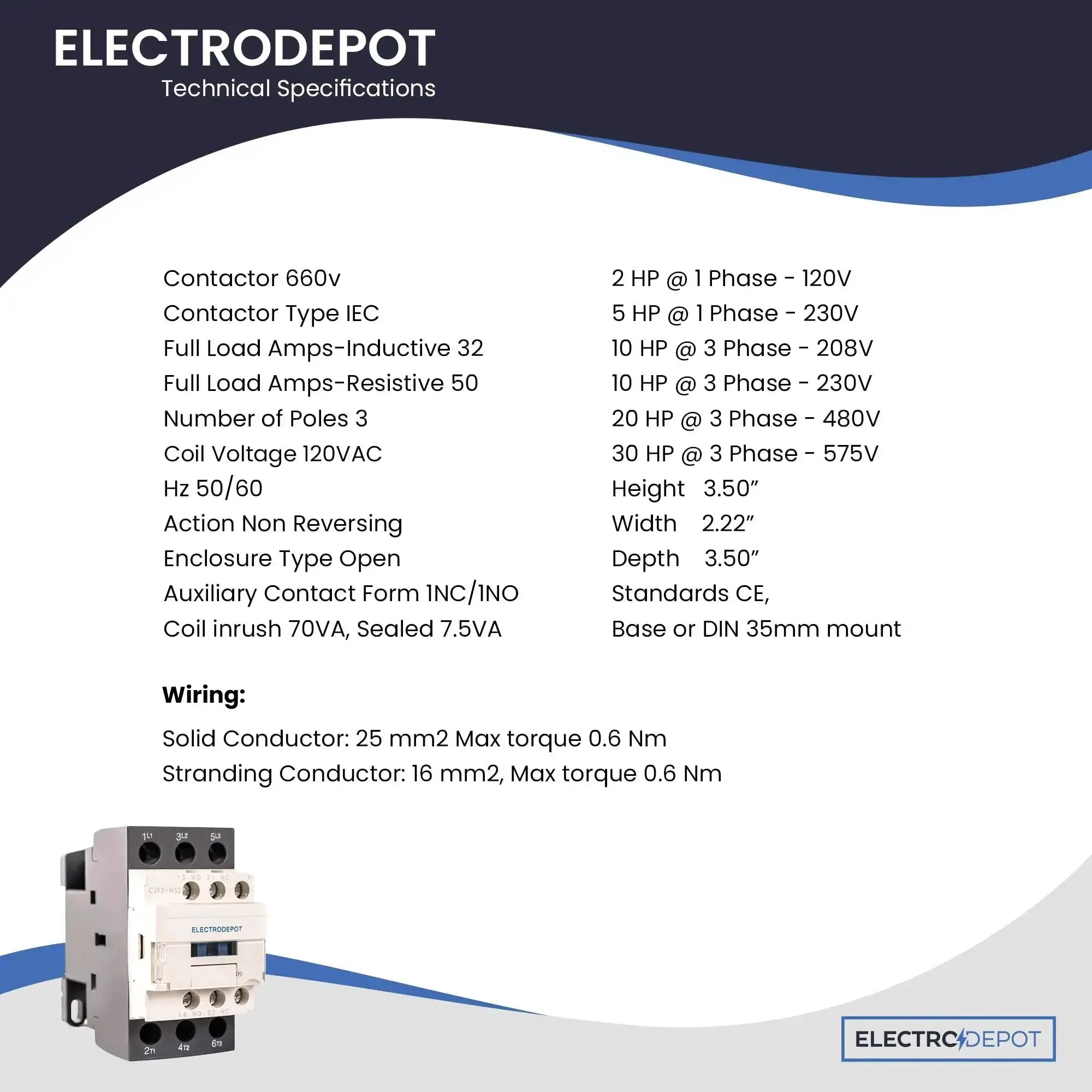

✅ Rated power: 32A inductive or motor load✅ Lighting load: up to 40A incandescent or general purpose
✅ Coil voltage: AC 110-120V, 50/60Hz

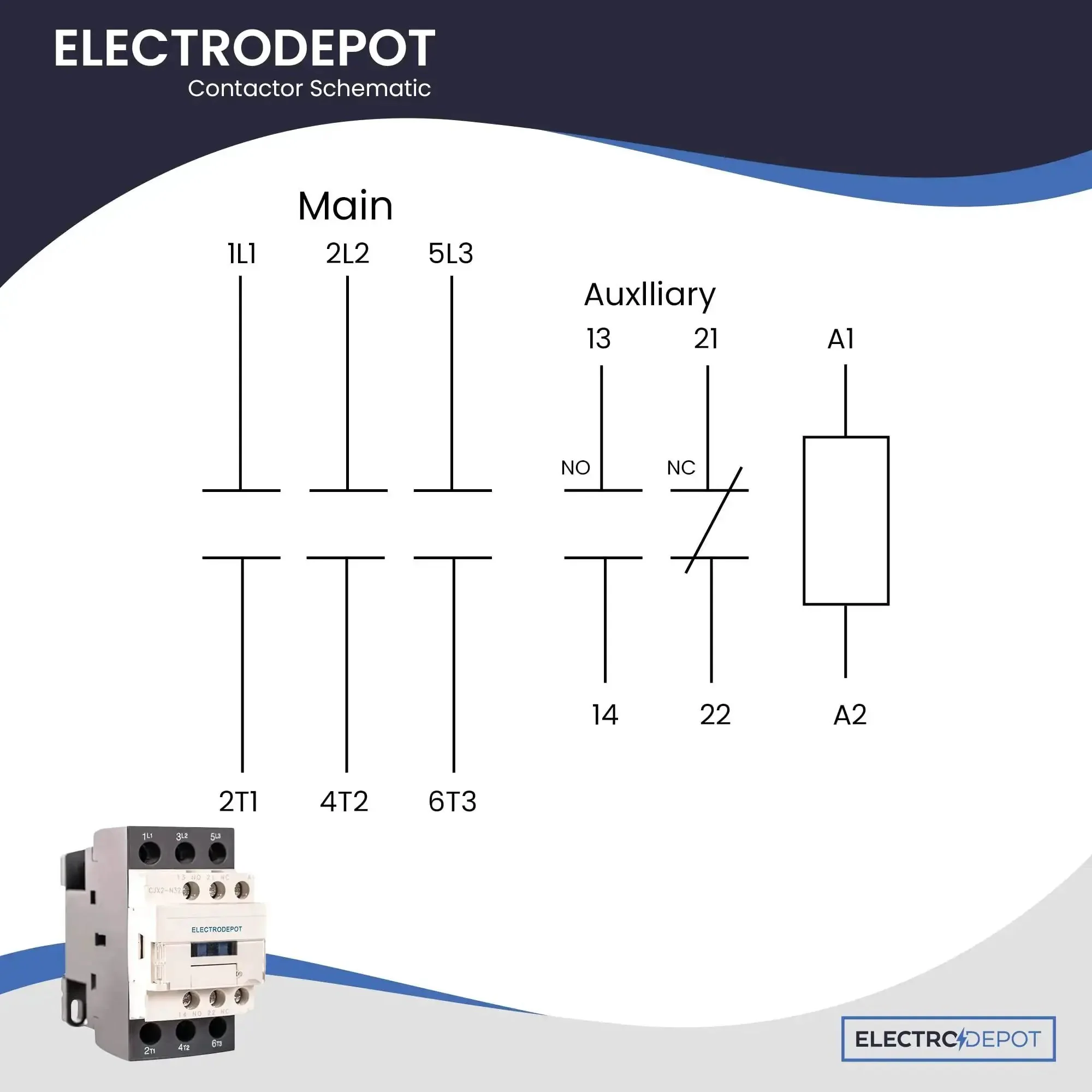

✅ Auxiliary contacts: 1NO and 1NC

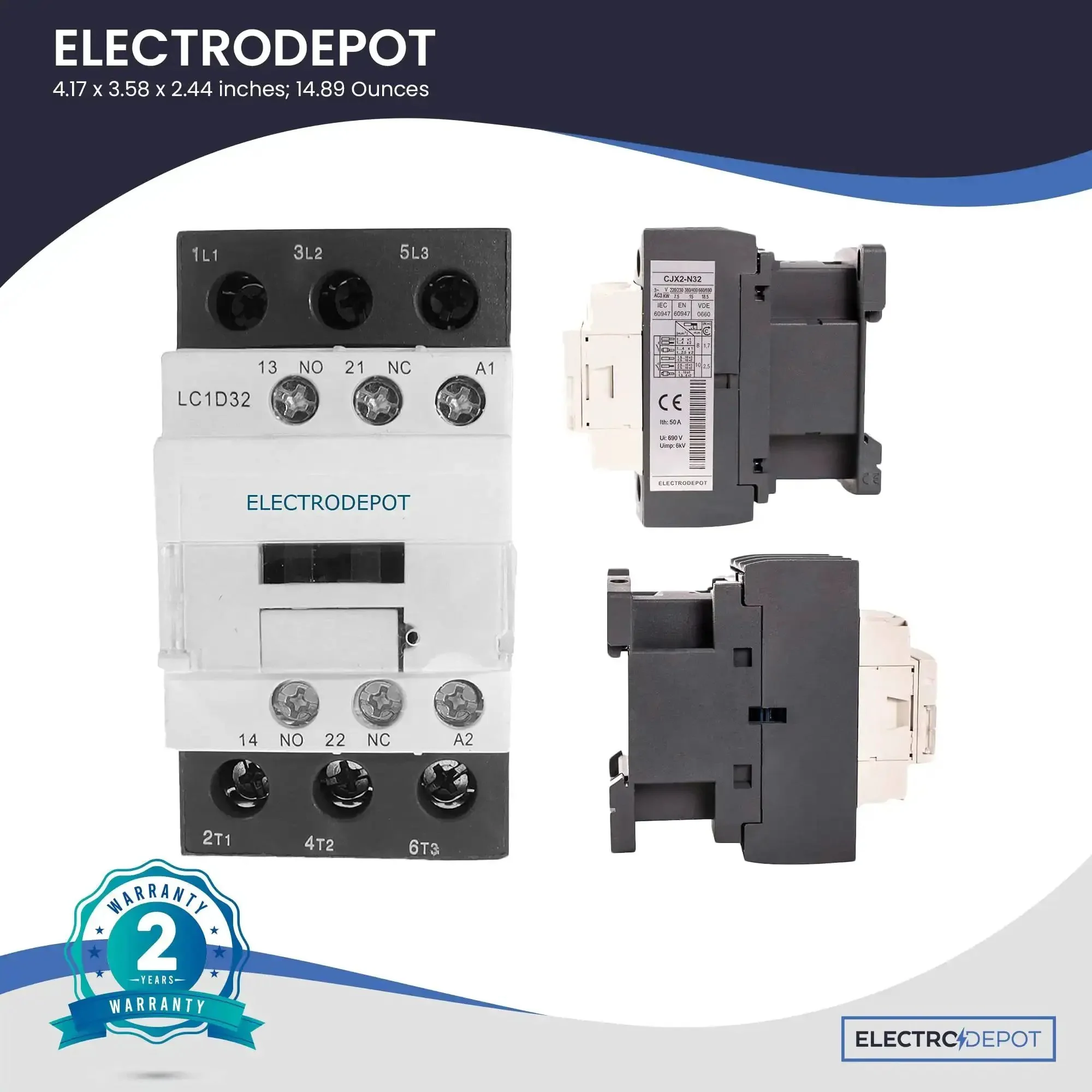

✅ Overall size: 85 x 45 x 92 mm (3.4 x 1.7 x 3.6 in); 600V rating; DIN rail mount
💡 What is a 3-pole contactor with a 120V coil used for in motor control applications? Handy device to manage motors and lighting from control panels. - motor start/stop signaling for automation - supports 32A motor load and 40A lighting load - DIN rail mountable and rated up to 600V
Original: $76.94
-65%$76.94
$26.93Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
✔️ 32A motor load, 40A lighting, 120V coil, 1NO/1NC aux, 1pc
This heavy duty three-pole contactor is designed to safely switch motors and lighting in industrial control panels. It is ideal for panel assemblies that require reliable DIN rail mounting, 120V control coils, and clear signaling via a built-in auxiliary contact.
✅ Rated power: 32A inductive or motor load✅ Lighting load: up to 40A incandescent or general purpose
✅ Coil voltage: AC 110-120V, 50/60Hz
✅ Auxiliary contacts: 1NO and 1NC
✅ Overall size: 85 x 45 x 92 mm (3.4 x 1.7 x 3.6 in); 600V rating; DIN rail mount
💡 What is a 3-pole contactor with a 120V coil used for in motor control applications? Handy device to manage motors and lighting from control panels. - motor start/stop signaling for automation - supports 32A motor load and 40A lighting load - DIN rail mountable and rated up to 600V
