Heavy Duty General Purpose Relay With Quick Connect Terminals Upper Bracket Mount SPST-NO Contacts 30A At 250V UL Class B Insulation Plug And Play For Industrial Control And Signal Switching AC 100 And 120

Heavy-Duty Relay with Quick-Connect Terminals - Single Unit
✔️ SPST-NO, 30A at 220VAC, coil 100-120VAC, UL Class B

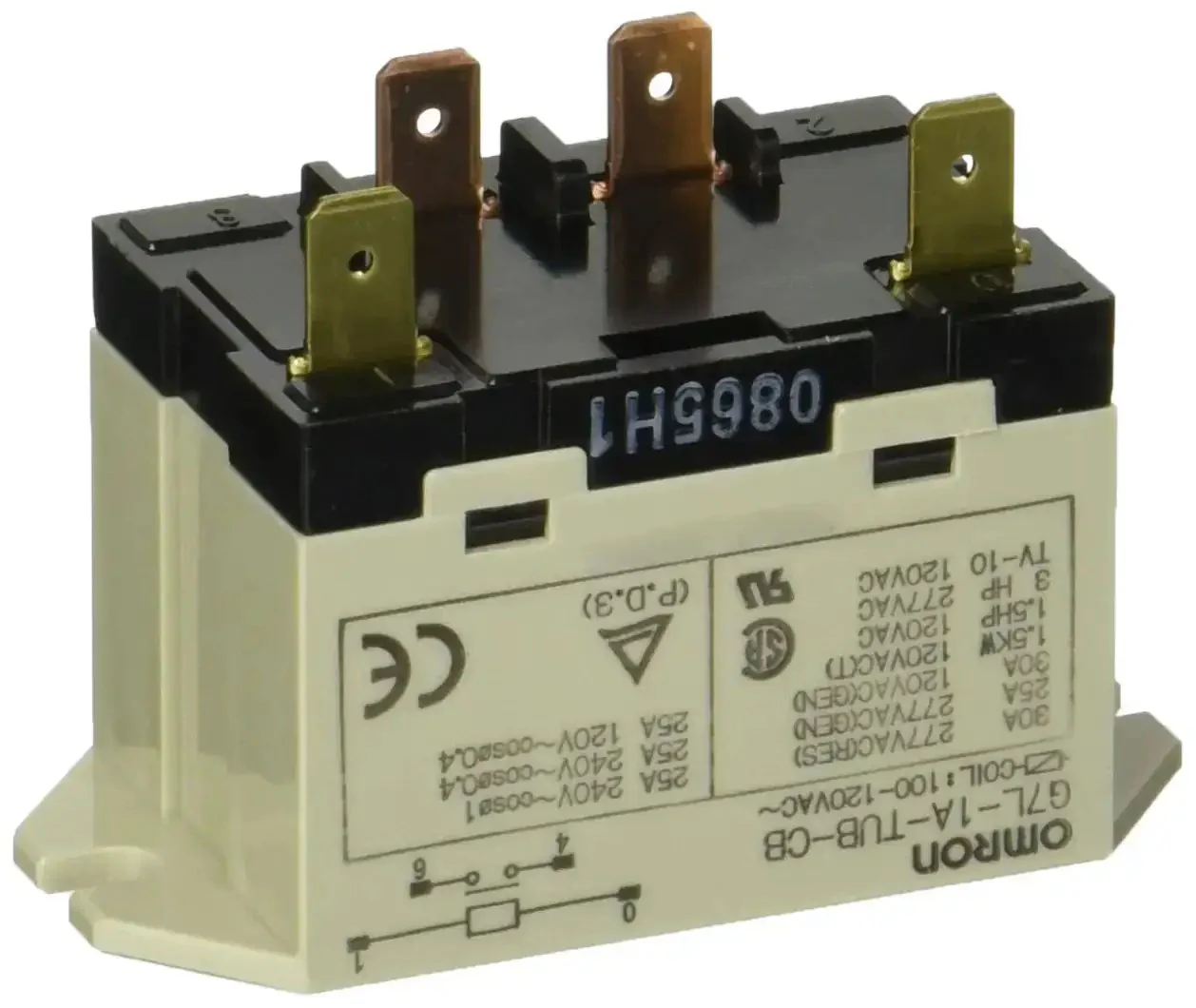

The G7L-1A-TUB-CB-AC100/120 is a heavy-duty general purpose relay designed for industrial control and signal switching. It mounts on upper brackets in control panels and handles high-current loads in pump and chemical processing applications. Enclosure dimensions: 49 x 34.5 x 68.6 mm (H x W x D).

✅ Contact form: SPST-NO
✅ Load rating: 30 A at 220 VAC
✅ Coil voltage: 100-120 VAC; input current 17-20.4 mA
✅ Insulation: UL Class B flame resistant
✅ Mounting: upper-bracket mount in equipment racks
✅ Terminals: quick-connect terminals for plug-and-play wiring

💡 What is a typical use for a general purpose relay in industrial control?

Relays are handy switches that let a small control signal switch a larger load, providing safe control and isolation.

• Control motors, pumps, and signaling devices in automation systems
• Isolate low-power control from high-power circuits
• Offer plug-and-play wiring with quick-connect terminals
• UL Class B insulation supports flame resistance and safety
