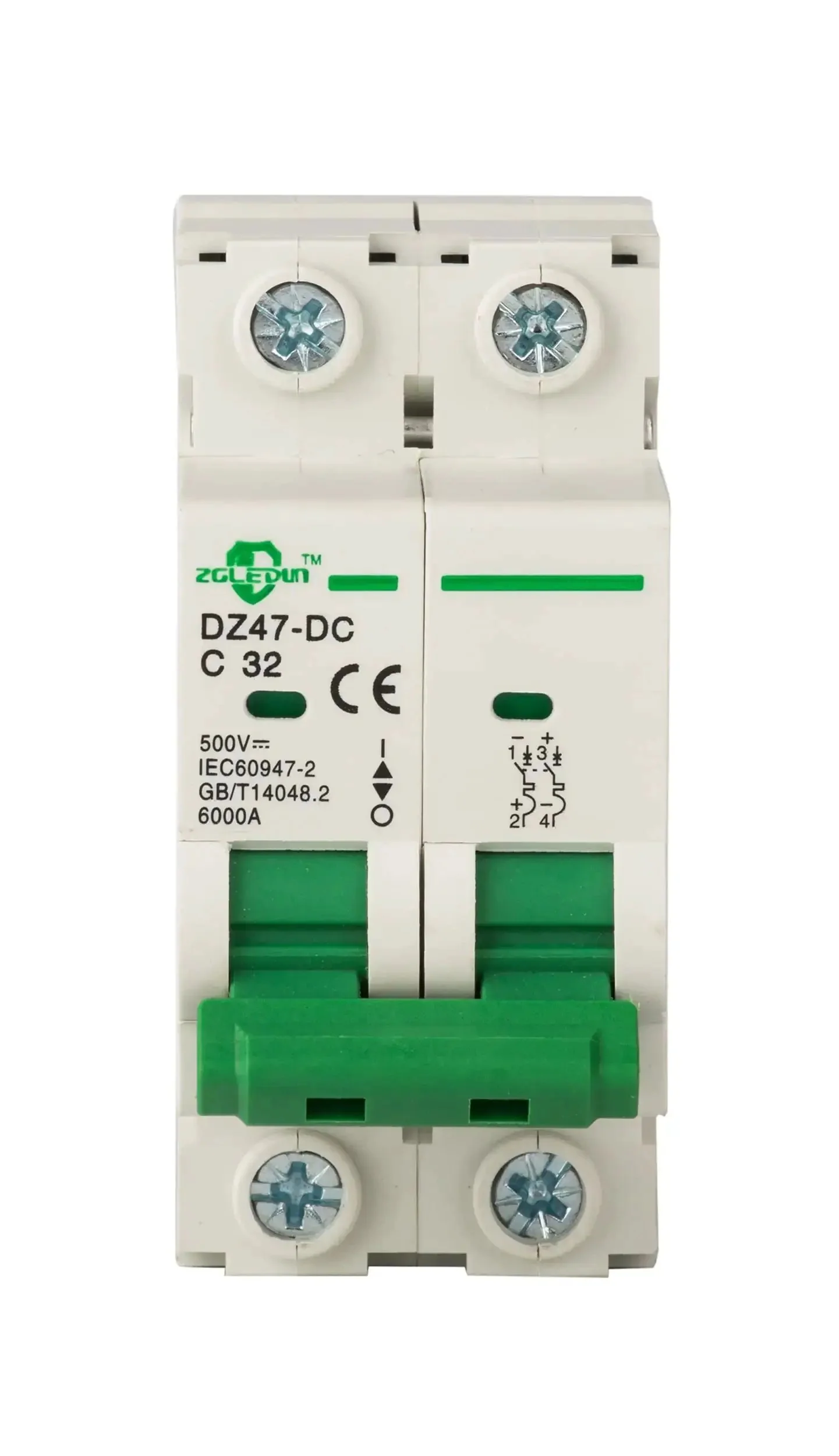

Go-To DC Miniature Circuit Breaker 2 Pole 32 Amp 250V to 500V DC Din Rail Mount With Thermal Magnetic Trip DZ47-63 C32 2P The Workhorse For Solar Power Home Lighting And Small Motor Control

2-Pole DC MCB, 32A, DIN Rail Mount, 250-500V DC
✔️ 2P 32A DC MCB, DIN-rail mount, 250-500VDC, C-trip, single unit

These compact DC miniature circuit breakers protect low-voltage circuits in solar power setups, lighting runs, and small motor controls. They install on DIN rails inside distribution boxes, delivering fast isolation during overloads or short circuits.

✅ 2P, 32A, 250-500VDC, C-tripping curve

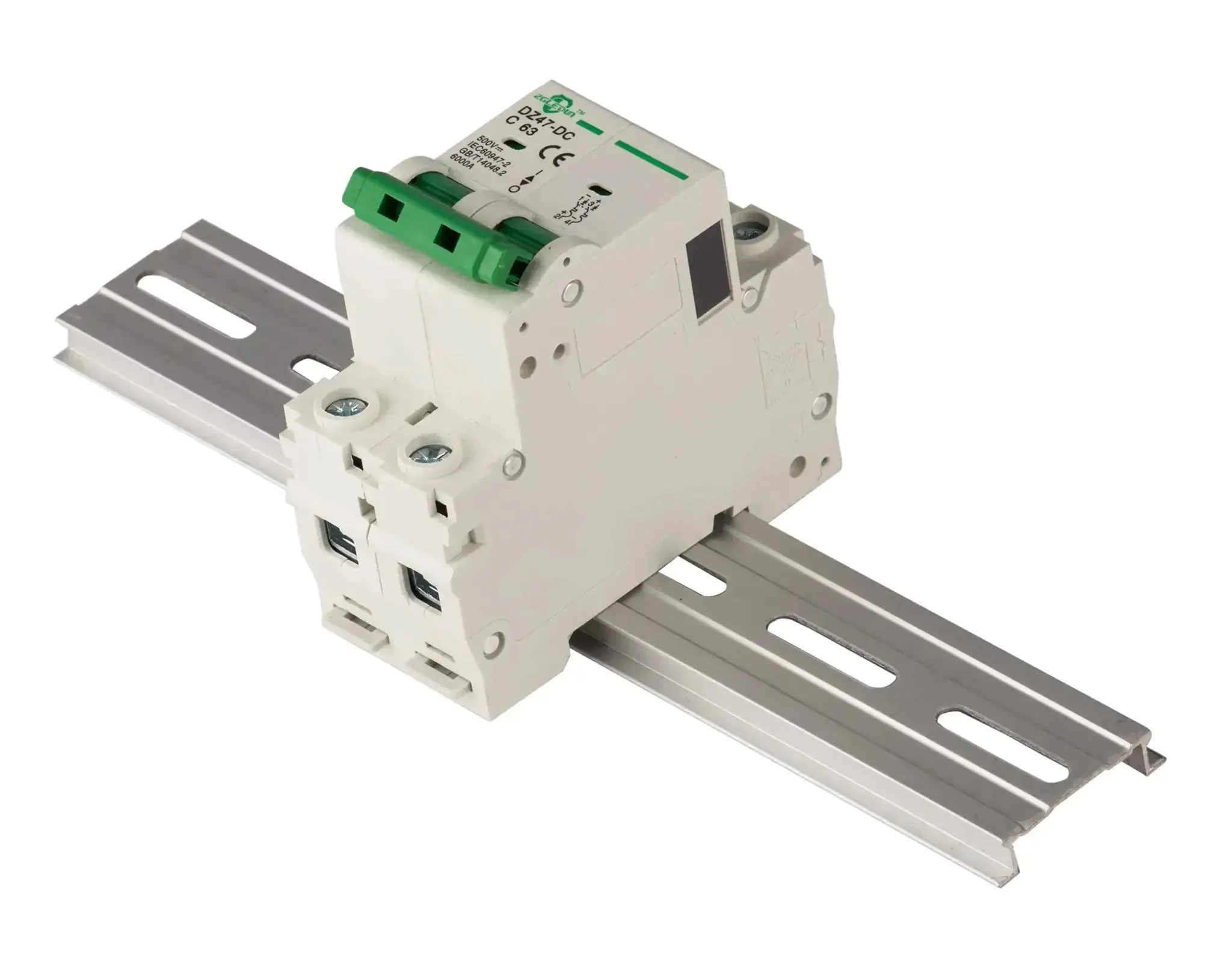

✅ DIN rail mount with compact 75 x 39 x 78 mm (3 x 1.6 x 3.1 in) footprint
✅ Electrical life up to 3000 cycles, mechanical life up to 20000 cycles
✅ VisiTrip indicator to show the faulty circuit
✅ VisiSafe green strip ensures contacts stay open for maintenance
✅ IP20 to IP40 enclosure protection, wide operating temp -35°C to 70°C

💡 What is a DC miniature circuit breaker used for in solar power and small motor circuits? This handy device protects circuits from overloads and short circuits. - It protects DC circuits in solar arrays, lighting, and small motors from overloads. - It mounts on DIN rails for quick, safe integration into distribution boxes. - The C-curve trip characteristic helps balance protection and nuisance trips in DC systems. - It fits compact enclosures with dimensions around 75 x 39 x 78 mm (3 x 1.6 x 3.1 in).
