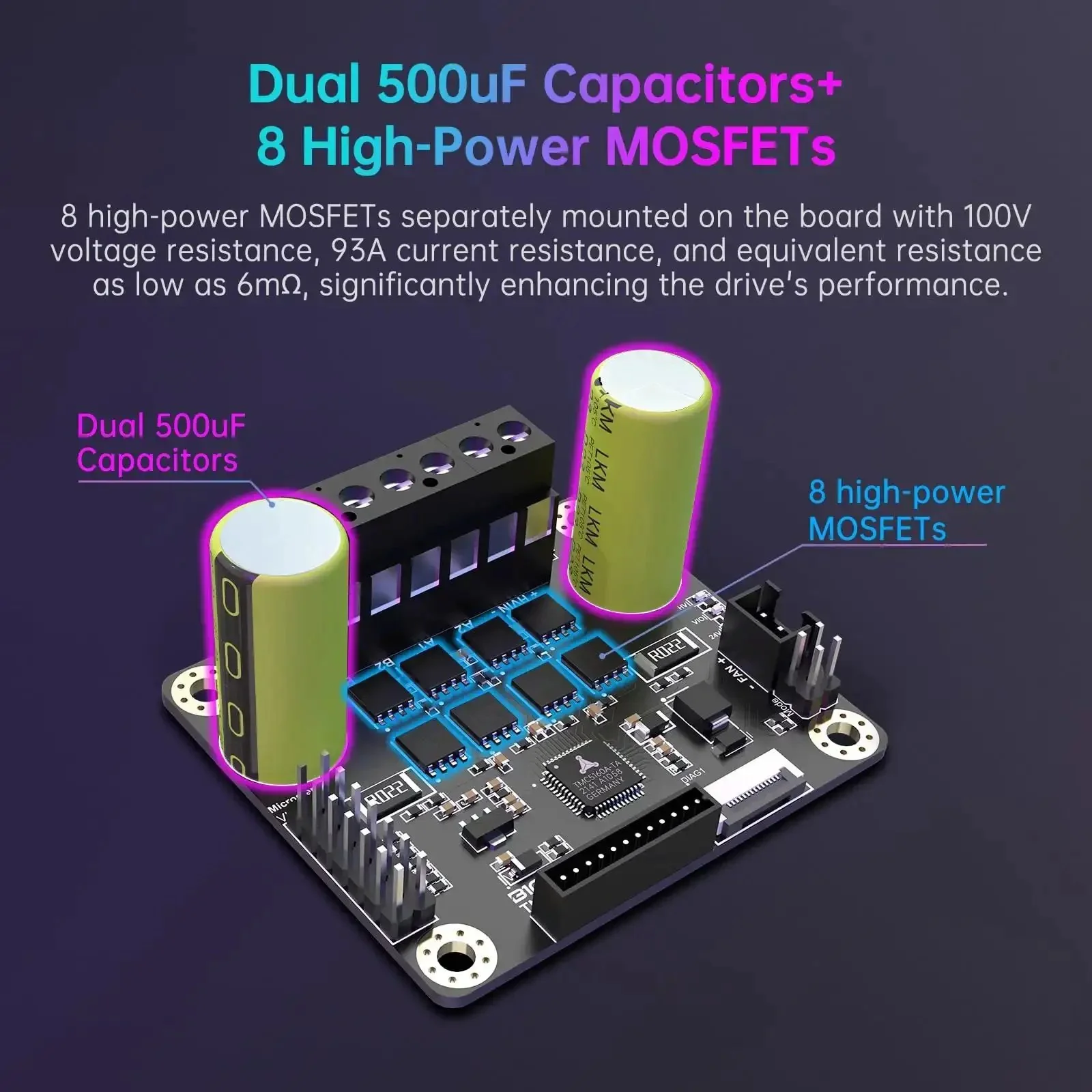

Dope TMC5160T Plus Stepper Motor Driver V1.0 With 8 MOSFETs 60V 10.6A IRMS Silent SPI For Marlin Klipper RRF Firmware In 3D Printers Manta M8P Octopus Pro Control Board Without Case

High-Performance TMC5160T Plus Driver for 60V systems
✔️ 60V max, 10.6A RMS, SPI/SD, includes adapters/wires, 1 unit

This high-current stepper motor driver uses the TMC5160T Plus chipset for smooth, silent motion in 3D printers and CNC rigs. It works with Marlin, Klipper, and RRF firmware via SPI or UART and is commonly used on control boards like Manta, M8P, and Octopus Pro for reliable, low-noise performance.

✅ Drive Chip: TMC5160-TA
✅ Input HVIN: 8V-60V
✅ Maximum IRMS: 10.6A; sine peak 15A
✅ Modes: SPI, SD, Standalone, UART; StealthChop and SpreadCycle
✅ On-board 24V fan interface for active cooling
✅ ESD protection on drive and logic power
✅ Includes adapters and wires for standard and EZ drive configurations
✅ Encoder interface reserved for DIY use

💡 What is a high-current stepper motor driver used for in 3D printers? A handy guide to why these drivers matter for reliable motion. - Handy for maintaining torque at higher loads - Helps prevent missed steps and jitter during prints - Works with Marlin, Klipper, and RRF via SPI or UART - Provides control methods like StealthChop and SpreadCycle for quiet operation and torque
