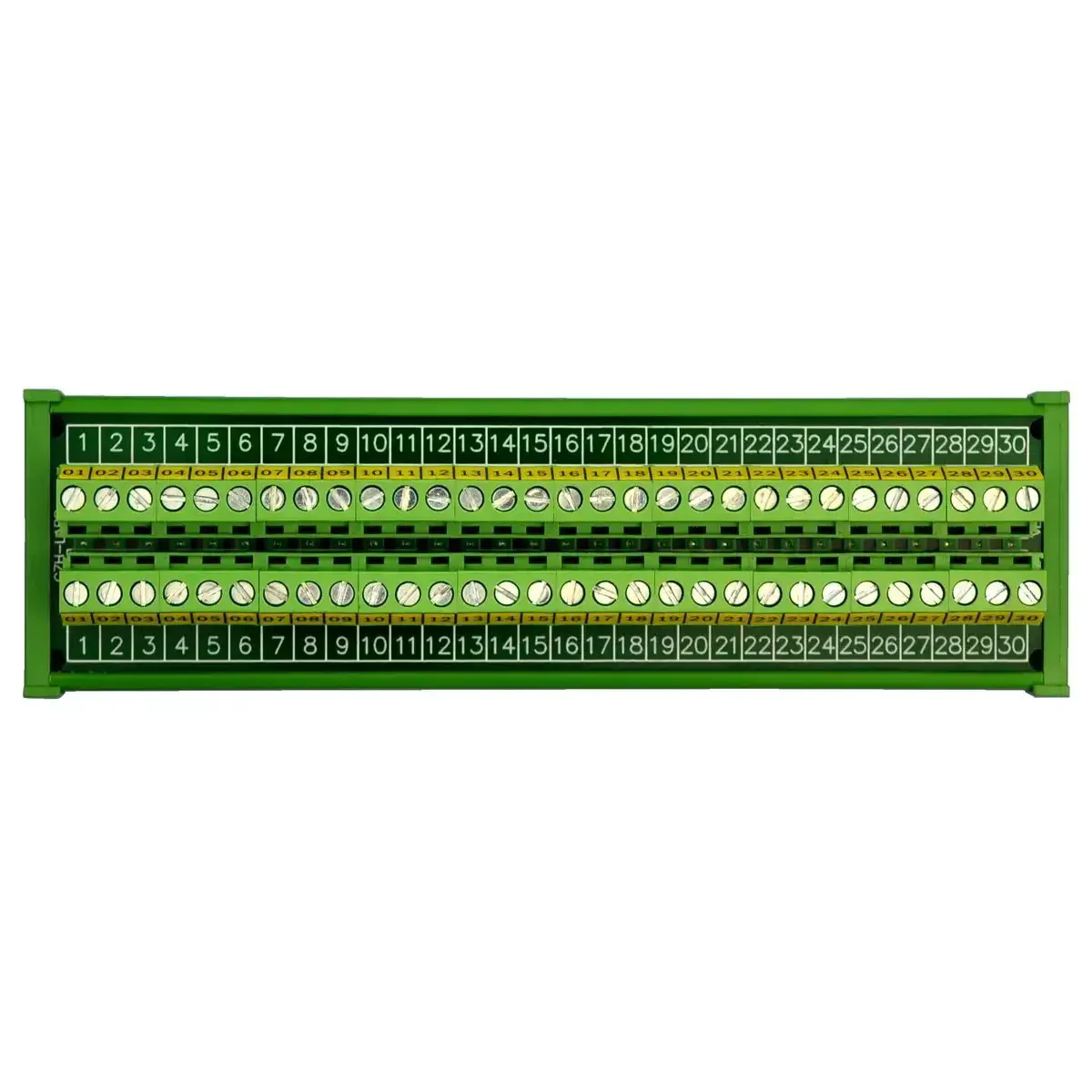

DIN Rail Mount 30-Position Screw Terminal Block Distribution Module With 24A Per Position, 400V Rating, 5.0mm Pitch, 7mm Strip Length, 26AWG To 12AWG Wire Range, Heavy Duty Industrial Terminal Block

30-Position DIN Rail Terminal Block: 24A/400V, 5mm Pitch
✔️ 30-position single-unit DIN rail block: 24A per position, 400V rating, 5.0mm pitch

This DIN rail mounted 30-position screw terminal block distributes power and signals in control panels, automation cabinets, and heavy industrial machines. It supports 26 AWG to 12 AWG wires and is built on a high-quality Taiwan DINKLE fireproof nylon carrier for rigidity and fire resistance, with Cr3+ zinc-plated steel screws and brass pin header/cage for durability. This module is designed to fit standard 35mm DIN rails for easy integration in rugged industrial environments. External dimensions: L163mm x W48mm x H39mm (6.42" x 1.89" x 1.54").

✅ 30-position screw terminal block with 24A per position
✅ 400V insulation rating for industrial power distribution
✅ 5.0mm / 0.197" pitch for dense wiring in compact panels
✅ Wire range 26AWG to 12AWG (2.5mm²) for broad compatibility
✅ Screws M3, steel, Cr3+ Zn plated; pin header and cage brass
✅ External dimensions: 163mm L x 48mm W x 39mm H (6.42" x 1.89" x 1.54")

💡 What is a DIN rail terminal block used for in automation panels?

A handy wiring hub that keeps power and signals tidy inside control enclosures. - Termination and distribution of wires on a DIN rail in control panels - Helps organize high-current and low-current circuits in one place - Compatible with 26 AWG to 12 AWG wires and 400V rated systems - Improves serviceability, fault tracing, and future upgrades in industrial setups
