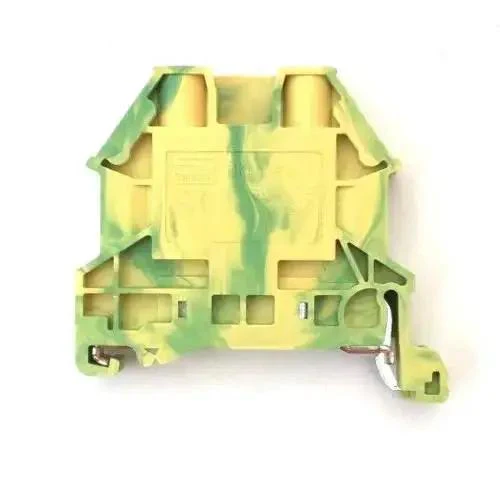

DIN Rail Grounding Terminal Block With Cover Screw Type 12 To 28 AWG Green Yellow 600V UL Listed With Strong Clamps Grounding Connector Pack Of 25 For Electrical Panels And Industrial Controls

DIN Rail Grounding Terminal Block with Cover for 12-28 AWG
✔️ UL Listed, 600V rating, strong clamps, PA body, 25 pack

This DIN rail grounding terminal block with cover is designed for electrical panels and industrial control cabinets, delivering a secure grounding path and reliable clamp fixation on DIN rails even in vibration and thermal variation.

✅ UL 12-28 AWG
✅ Includes cover on both sides
✅ High conductivity PA body
✅ Rated impulse withstand voltage: 6KV
✅ Torque: 0.4 N m
✅ Screw: M2.5
✅ Wire strip length: 8-10 mm
✅ Dimensions: 5.1 x 40.7 x 45.4 mm
✅ End cover: DK2.5NC-PE
✅ Packing: Pack of 25

💡 What is a grounding terminal block used for in electrical panels?

It provides a handy, reliable grounding point for metal enclosures and control circuits in electrical panels.

- Handy grounding path on DIN rails for panels
- Works with 12-28 AWG conductors for flexible wiring
- UL listed for up to 600V systems
