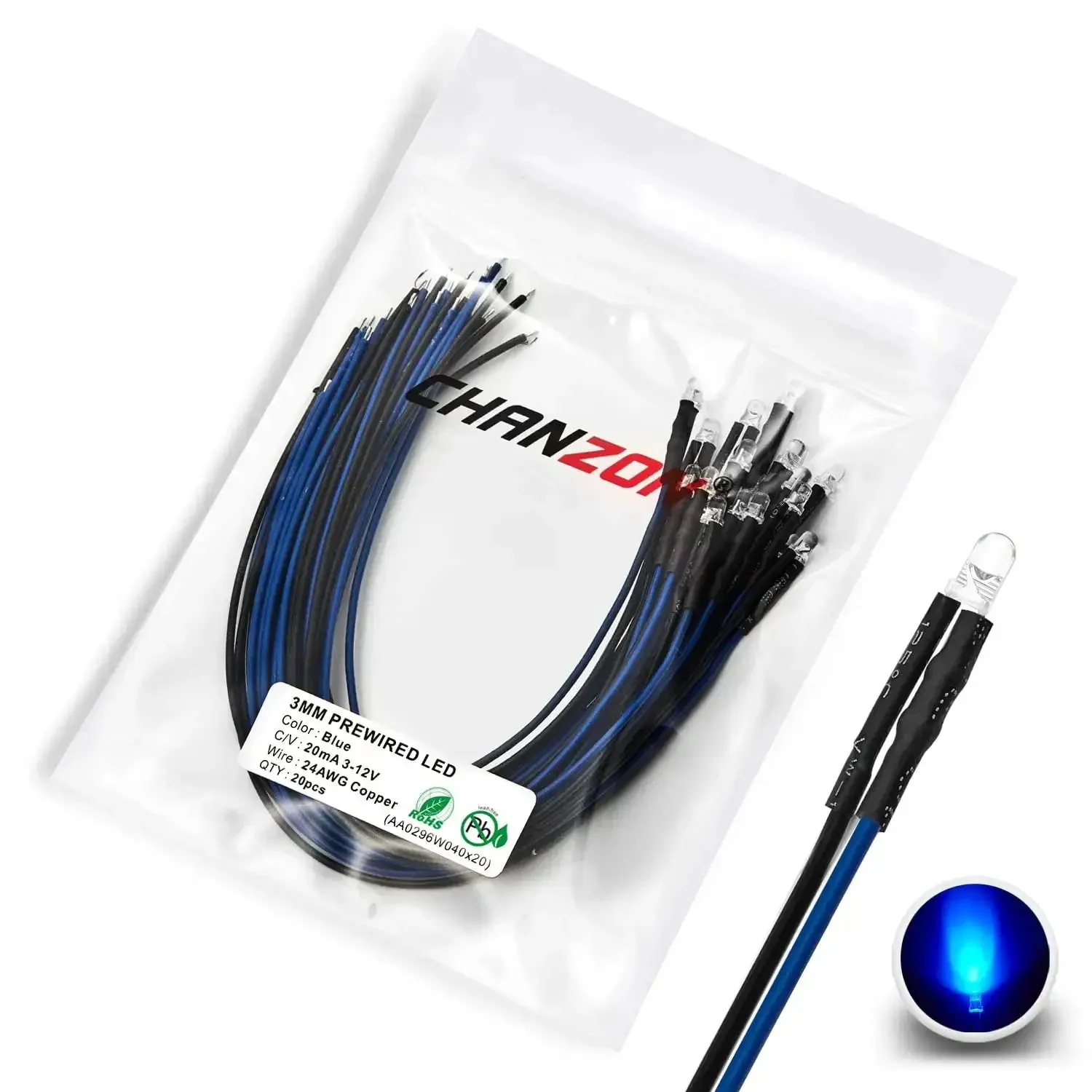

Blue 3mm Pre Wired LED Diodes 20 Pack With 560 Ohm 0.25W Resistor And 24 AWG Wire Clear Round Lens DC 12V Dash Illumination Indicator Lights For Automotive Projects

Blue 3mm Pre-Wired LED Diodes with 560Ω Resistors, 12V
✔️ 20 pcs pack, blue 3mm, 12V, 20mA, 24AWG, 0.25W, ready-to-use

These blue 3mm LEDs come pre-wired with 24 AWG copper wires and a fixed 560Ω resistor for 12V operation, making them ideal for dashboard illumination, DIY electronics, and hobby projects.

✅ Color: Blue, wavelength 455-465nm, ultrabright 4500-5500 mcd
✅ Lens: 3mm clear round, viewing angle 30°
✅ Forward voltage: 12V, current 20mA, wattage 0.24W
✅ Resistor: 560Ω, 0.25W, tolerance ±1%
✅ Wire: 24AWG tin-coated, length 20 cm / 7.9 in
✅ Polarity: Anode + (Blue Wire), Cathode - (Black Wire)
✅ Pack: 20 pieces per pack; compatible with DIY lighting and indicators

💡 What is a pre-wired blue LED with resistor used for in electronics projects?

It's handy for quick dash lighting and indicator signals in cars and hobby builds.

• Used in automotive dashboards, model lighting, indicators
• Includes fixed 560Ω resistor and 24 AWG pre-soldered wire
• Operates at 12V with about 20mA current for bright but safe brightness
• Blue wavelength 455-465nm and 30° viewing angle for focused lighting
