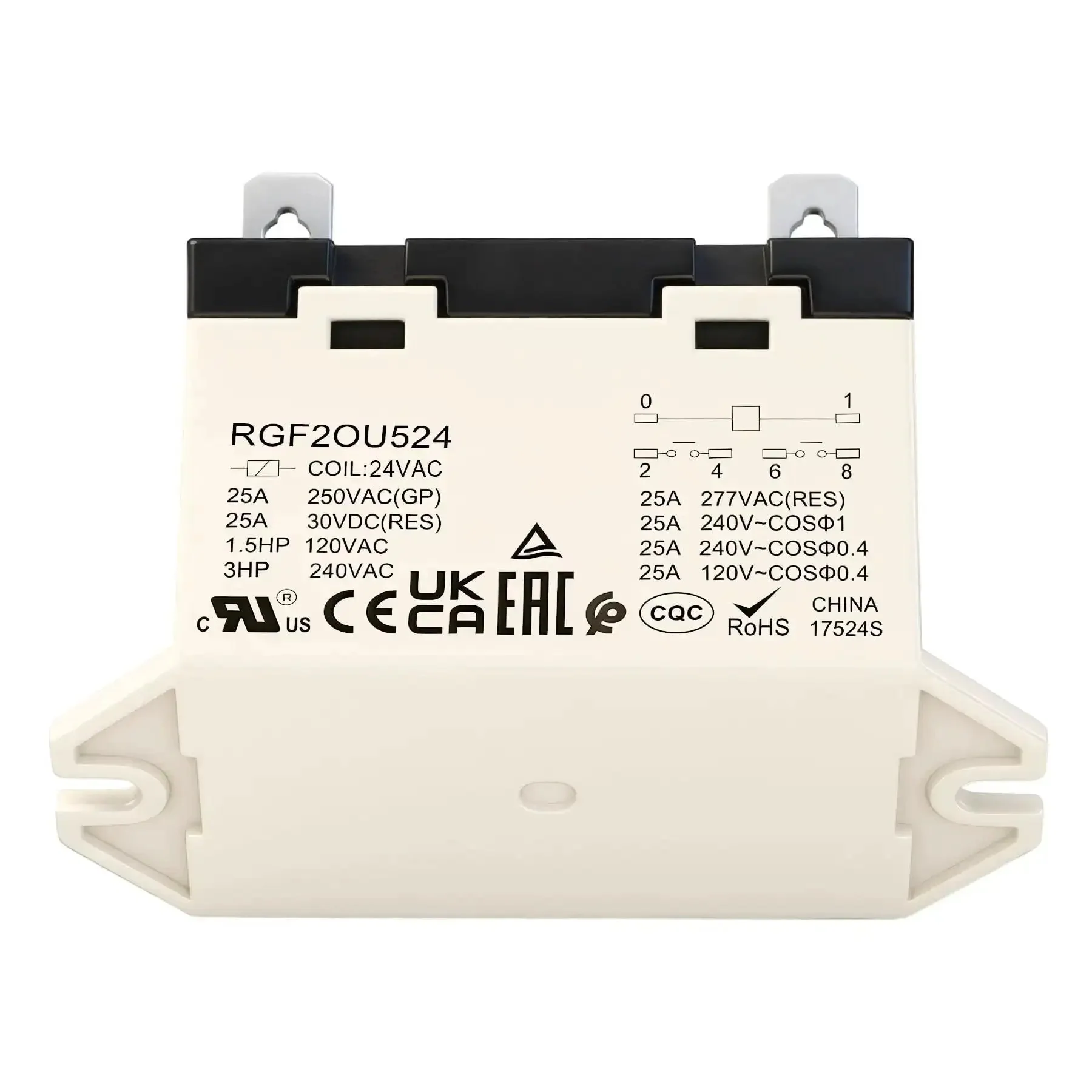

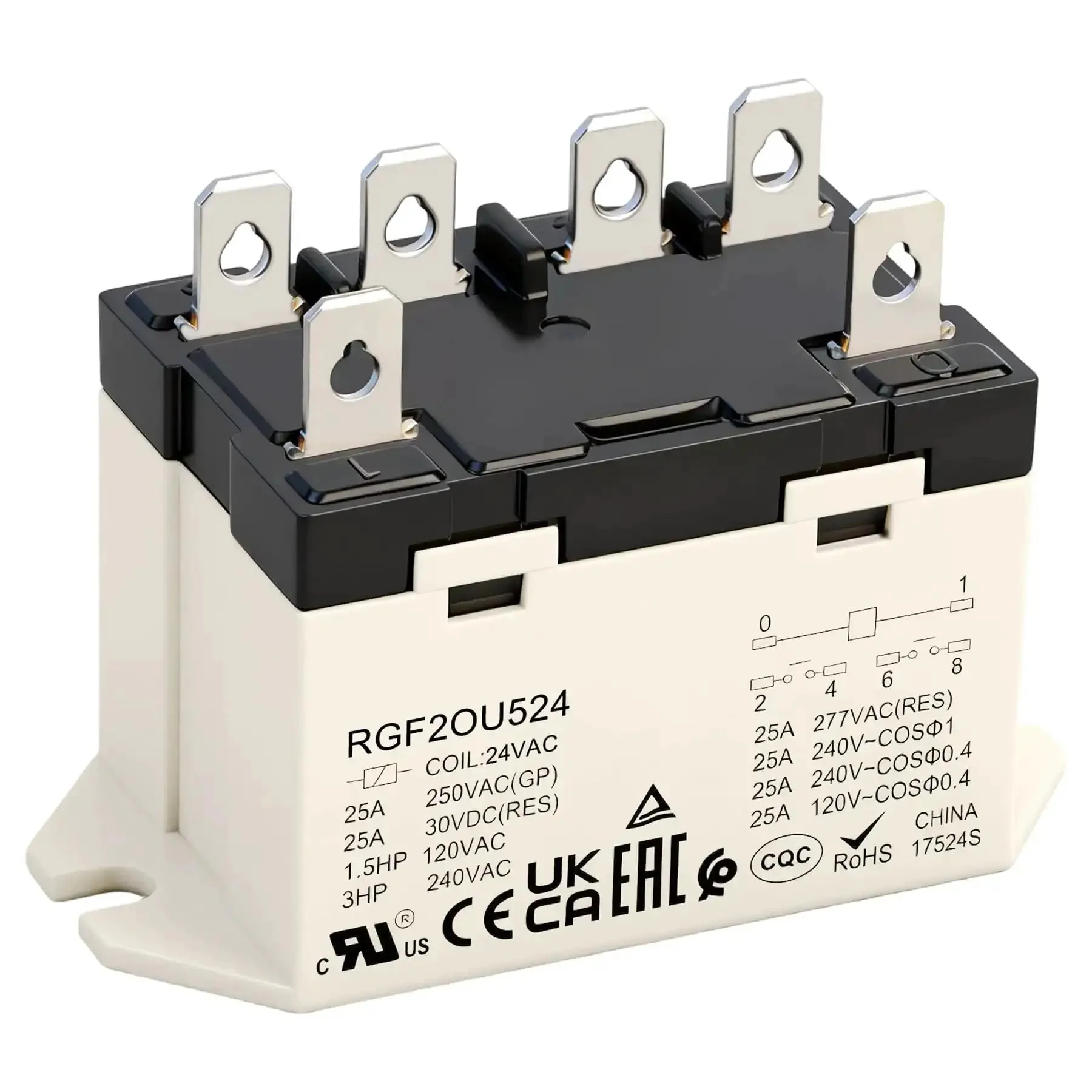

Beefy General Purpose Relay 24V AC Coil, 25A at 277VAC and 30VDC, DPST Six Pin, Double Break Contacts, UL CE TÜV ROHS Certified for Industrial Control and Automation
✔️ 24V AC coil, DPST six-pin, double-break contacts, UL/CE/RoHS
This beefy general-purpose relay is built for industrial control and automation, handling high-load switching in panels, HVAC gear, and power distribution systems. It uses a 24V AC coil and a double-break, two-circuit contact design for reliable, frequent cycling in demanding environments.
✅ Coil voltage: 24V AC
✅ Load rating: 25A at 277VAC/30VDC

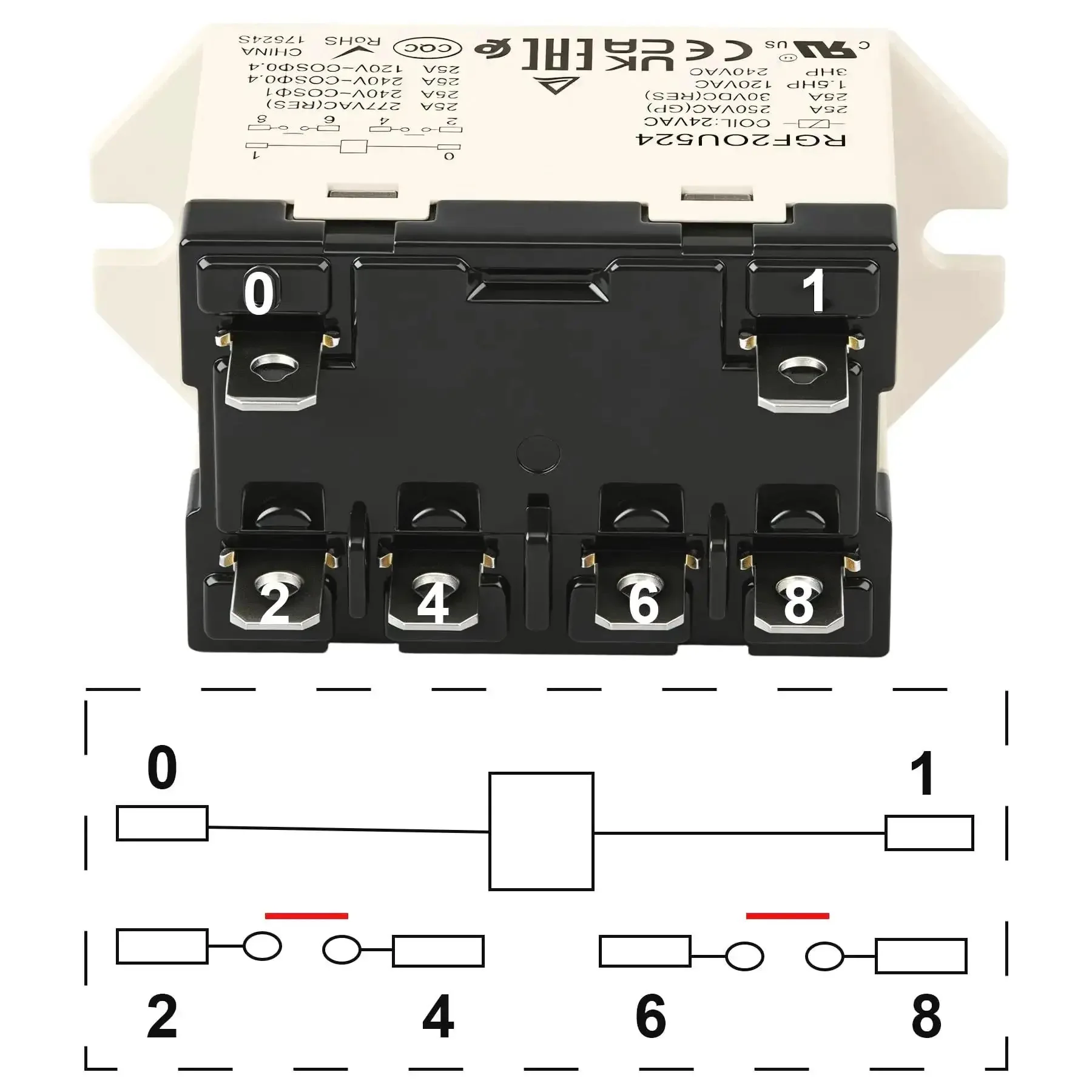

✅ Configuration: DPST - 2NO
✅ Pins: 6-pin housing
✅ Certifications: UL, CE, TÜV, ROHS
✅ Service life: up to 50 million cycles
💡 What is a 24V coil relay used for in industrial control systems?
In industrial control, this type of relay is handy for safely switching high-load devices.
- handy for turning motors, compressors, or heaters on and off in control panels - supports high-current switching up to 25A at 277VAC / 30VDC - features double-break DPST contacts for safer, cleaner switching - UL CE TÜV ROHS certified for reliability and safetyOriginal: $33.89
-65%$33.89
$11.86Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
✔️ 24V AC coil, DPST six-pin, double-break contacts, UL/CE/RoHS
This beefy general-purpose relay is built for industrial control and automation, handling high-load switching in panels, HVAC gear, and power distribution systems. It uses a 24V AC coil and a double-break, two-circuit contact design for reliable, frequent cycling in demanding environments.
✅ Coil voltage: 24V AC
✅ Load rating: 25A at 277VAC/30VDC
✅ Configuration: DPST - 2NO
✅ Pins: 6-pin housing
✅ Certifications: UL, CE, TÜV, ROHS
✅ Service life: up to 50 million cycles
💡 What is a 24V coil relay used for in industrial control systems?
In industrial control, this type of relay is handy for safely switching high-load devices.
- handy for turning motors, compressors, or heaters on and off in control panels - supports high-current switching up to 25A at 277VAC / 30VDC - features double-break DPST contacts for safer, cleaner switching - UL CE TÜV ROHS certified for reliability and safety
