Beefy 30A 12V DC General Purpose Relay With Wash Tight Enclosure DPST NO Two Form A Contacts For Heavy Duty Loads In Automotive And Industrial Applications Built To Handle Tough Currents

Heavy-Duty 12V DC Relay: 30A, Wash-Tight DPST-NO
✔️ 1x relay, 30A, 12VDC, DPST-NO, wash-tight enclosure

This is a beefy, general-purpose relay designed for high-power switching in automotive and industrial equipment. With a 12V coil and a wash-tight sealed enclosure, it stands up to moisture, dust, and vibration in tough environments.

✅ 30 A current rating for heavy loads
✅ 2 Form A DPST-NO contact configuration
✅ 12 V DC coil voltage for easy wiring
✅ Sealed, wash-tight enclosure resists moisture
✅ AgCdO contact material for durability and conductivity
✅ Quick Connect termination for fast wiring
✅ Chassis mount for solid installation
✅ Operating temp -55°C to 85°C
✅ Switches up to 277 VAC nominal

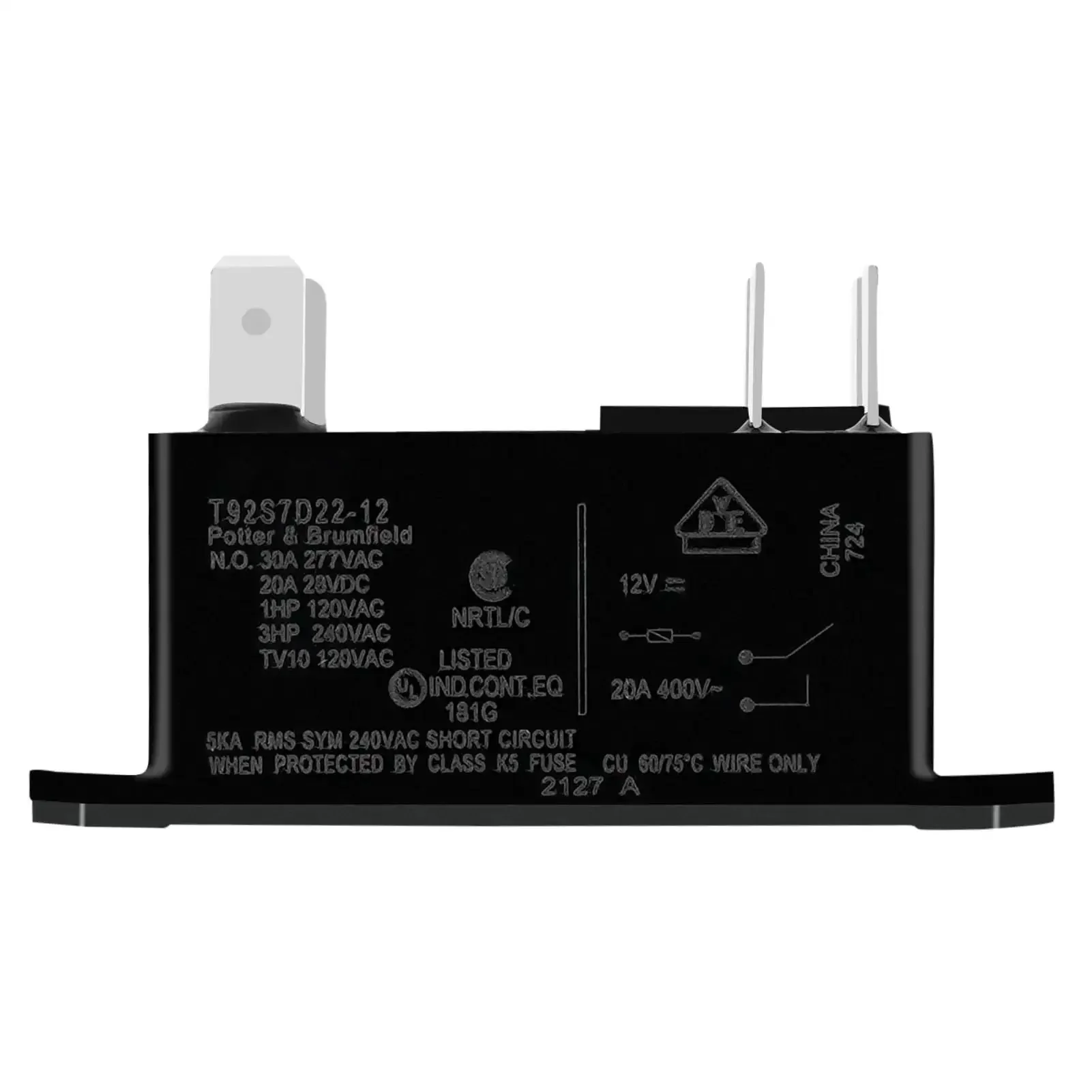

✅ Includes 1 x T92S7D22-12

💡 What is a 12V DC relay used for in electrical control systems?

Relays like this are handy for turning high-current devices on and off from a small control signal. They provide isolation, protect control electronics, and enable easy wiring in automotive and industrial panels.

• High current switching with 30 A rating
• Sealed wash-tight housing resists moisture and dust ingress
• 12 V DC coil and quick-connects simplify installation
• AgCdO contacts ensure reliable conductivity and long life
