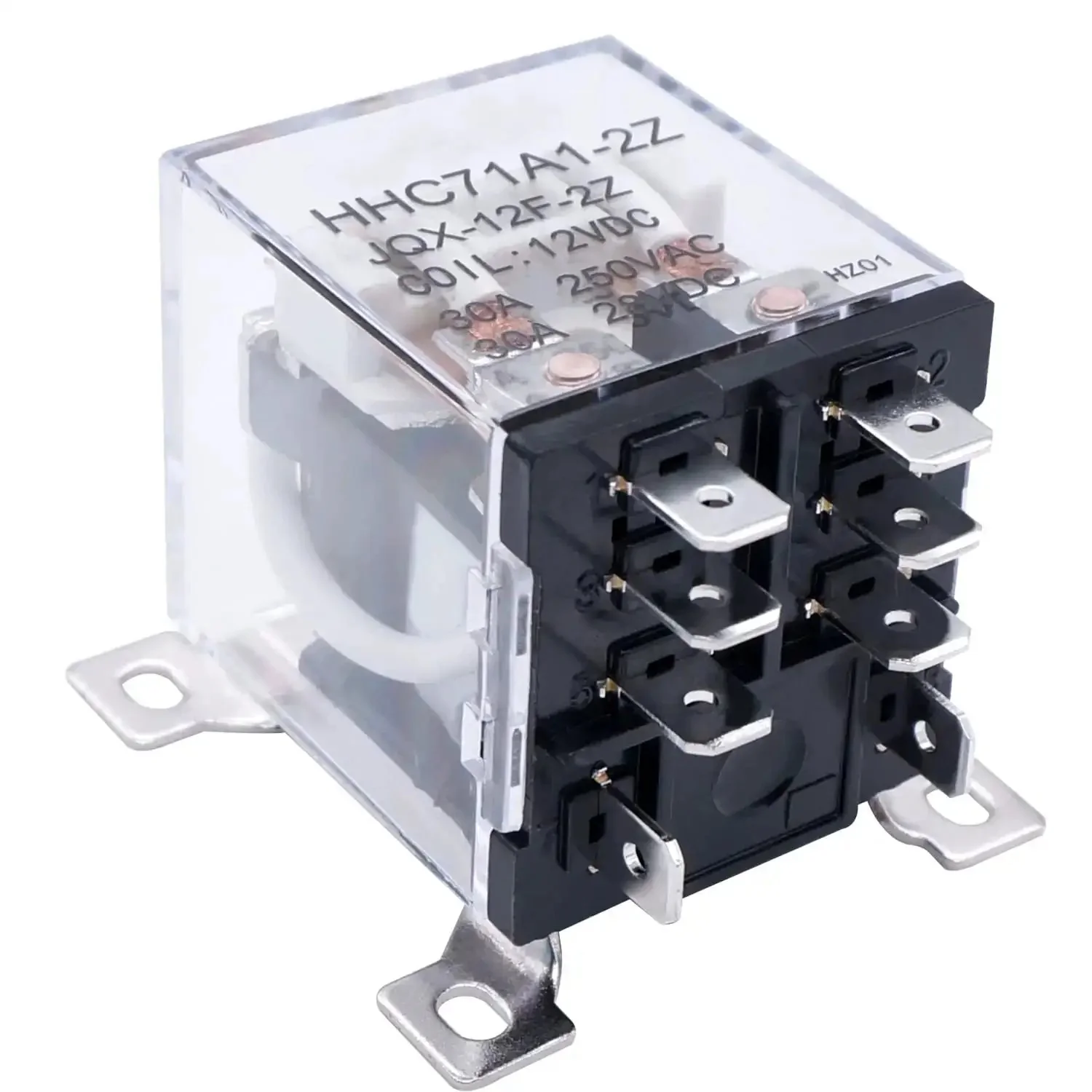

Beefy 12V DC Coil Relay With DPDT 30A 2NO 2NC 8 Pin Heavy Duty General Purpose Relay For Automotive And Industrial Control Power Switching And Home Automation Projects

Heavy-Duty 12V DC DPDT Relay for Auto and Industrial Use
✔️ 8-pin DPDT, 30A at 250V AC / 28V DC, 12V coil, single unit

Power relay with DPDT 2NO 2NC contacts, designed to switch high current loads in automotive, industrial control, and home automation projects. Its compact 8-pin form and metal-plastic body give sturdy performance in harsher environments.

✅ Contact configuration: DPDT with 2 NO and 2 NC contacts
✅ Coil voltage: 12V DC
✅ Rating: 30A at 250V AC / 28V DC
✅ Package: 8-pin plastic/metal body, weight ~93 g
✅ Dimensions: body 35×33×40 mm (1.38×1.30×1.57 in); total height 48 mm (1.89 in); mounting hole spacing 38.5×37.8 mm (1.52×1.49 in)
✅ Wiring: pins 3 and 5 NO; pins 1 and 5 NC; coil 12V DC

💡 What is a handy DPDT relay used for in control systems?

These handy relays let you switch two circuits and control power safely in automotive, industrial, or home automation projects.

• Power switching for automotive or industrial control with two NO and two NC contacts
• Motor reversing or interlocking in simple automation projects
• Safe isolation between control electronics and high power loads
• Compact 8-pin design fits tight enclosures
