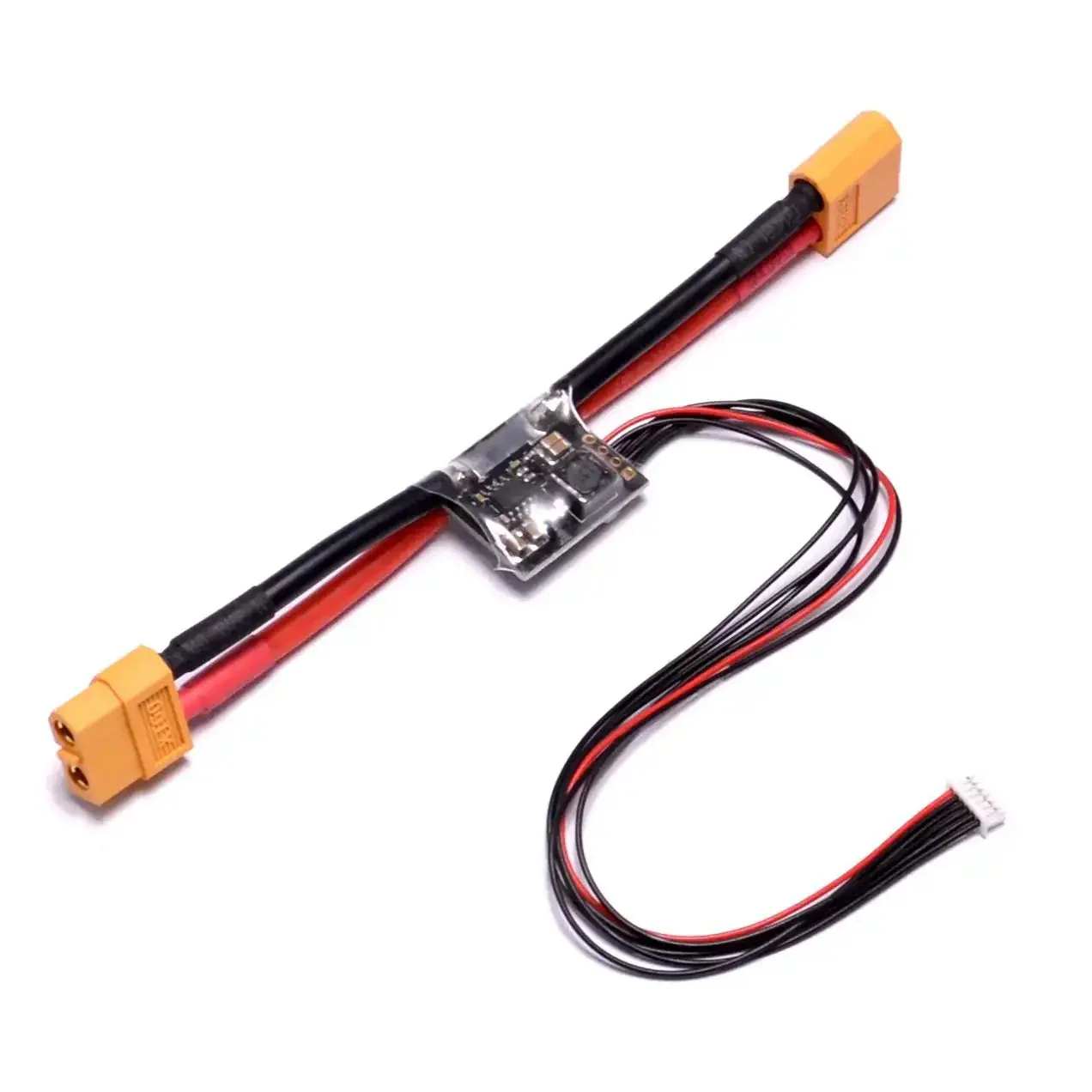

5.3V 3A BEC Power Module With XT60 Plug For APM Pixhawk Flight Controllers APM2.5 2.6 2.8, Includes 6-Position DF13 Cable, 8S LiPo Compatible, Powers APM And RC Receiver

Powerful 5.3V 3A BEC Module for APM Pixhawk systems
✔️ 5.3V output up to 3A, 8S LiPo compatible, DF13 6-pin to APM

This compact BEC power module provides a clean, regulated 5.3V supply for APM Pixhawk flight controllers and RC receivers. It wires into the PM connector on APM 2.5 series boards and is a solid choice for hobbyist drones using 8S LiPo packs.

✅ 5.3V regulated output up to 3A continuous
✅ Switching regulator for efficient power delivery
✅ XT60 input plug for easy battery connection
✅ Includes 6-position DF13 cable to APM 2.5 PM connector
✅ Compatible with up to 8S LiPo packs
✅ Designed to power APM, RC receiver, GPS, and 3DR radio only (not servos)

💡 What is a BEC power module used for in Pixhawk flight controllers?

A handy, general answer: the BEC module powers the main control system and RC gear from a LiPo pack, keeping the flight controller stable without draining servos. - Provides regulated 5.3V power for the flight controller and RC receiver - Connects to the APM PM connector via the DF13 cable - Supports up to 8S LiPo packs - Not intended to power servos; use the aircraft's ESC/BEC for servo power
