4 Inch Conduit Punch And Die Set For M20x1.5 Metric Knockout Driver, Hydraulic Punch Tool, 13 Ton Capacity, Cuts 1/8 Inch Steel And 1/16 Inch Stainless, Hole Size 4.5 Inch, Compatible With Draw Studs THA010 THA011

4-Inch Conduit Punch Die Set for M20x1.5 Driver
✔️ 1-piece set, 13 US tons, 4-inch conduit punch with 4.5-inch hole

This 4 inch conduit punch and die set is designed for electrical work, enabling precise hole creation in metal conduits and panels. It is compatible with draw studs THA010 and THA011 and is ideal for electricians installing conduit fittings and panels in equipment enclosures.

✅ Hole size produced: 4.5 in (114.3 mm) for 4 inch conduit
✅ Actual conduit size: 4 in (102 mm) with a 4.5 in hole
✅ Punching thickness: 1/8 in (3.175 mm) steel; 1/16 in (1.587 mm) stainless
✅ Punch force: 13 US tons
✅ Material: Hardened tool steel with black oxide finish
✅ Compatibility: Draw studs THA010 THA011 (not THA001/THA100)

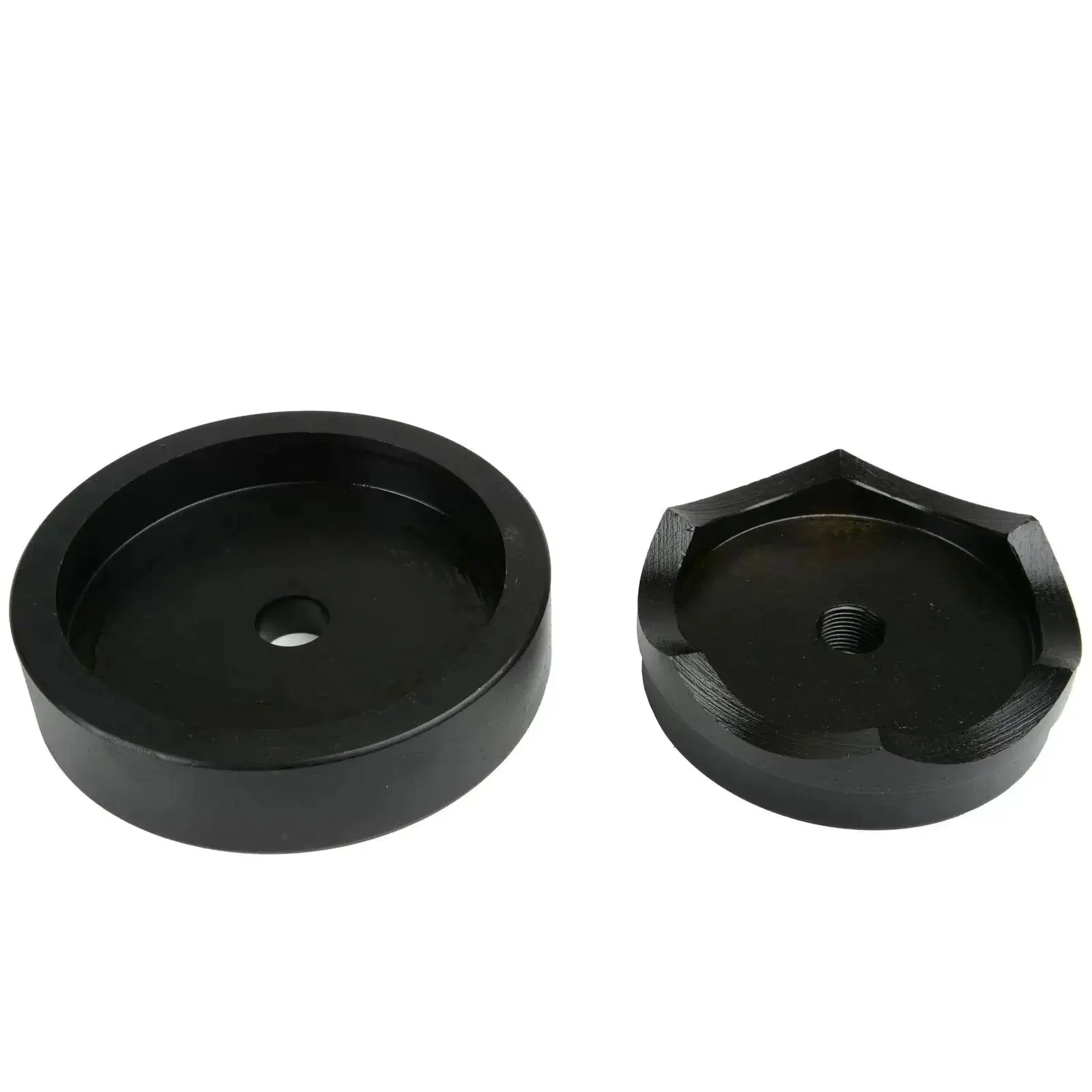

✅ Includes: single punch and die set

💡 What is a conduit punch and die set used for? This handy tool makes clean, round holes in metal conduits and panels for fittings.

• Increases accuracy by matching hole size to conduit inner diameter
• Great for electricians mounting boxes, enclosures, and panels
• Works with M20x1.5 draw studs THA010 THA011 for proper operation
