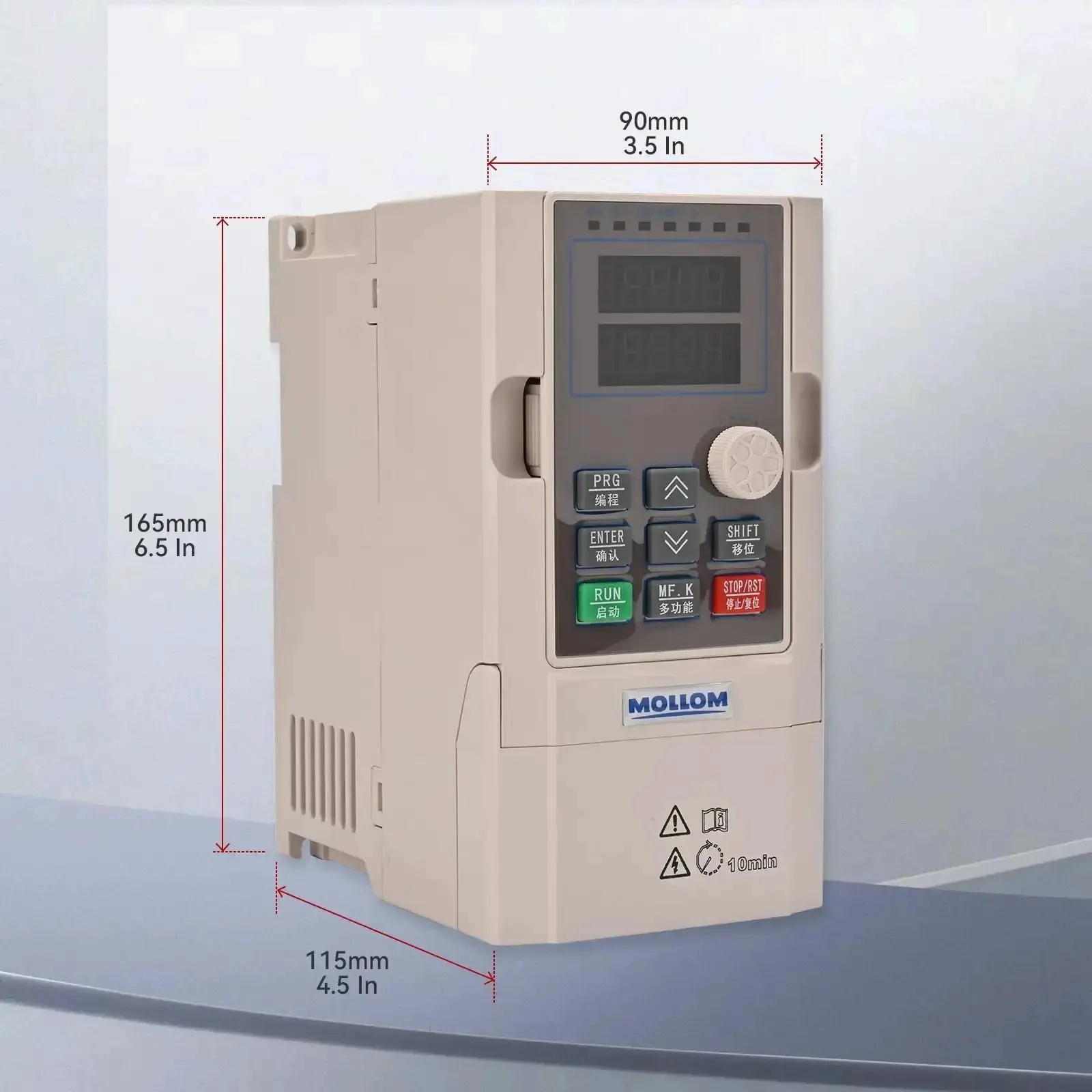

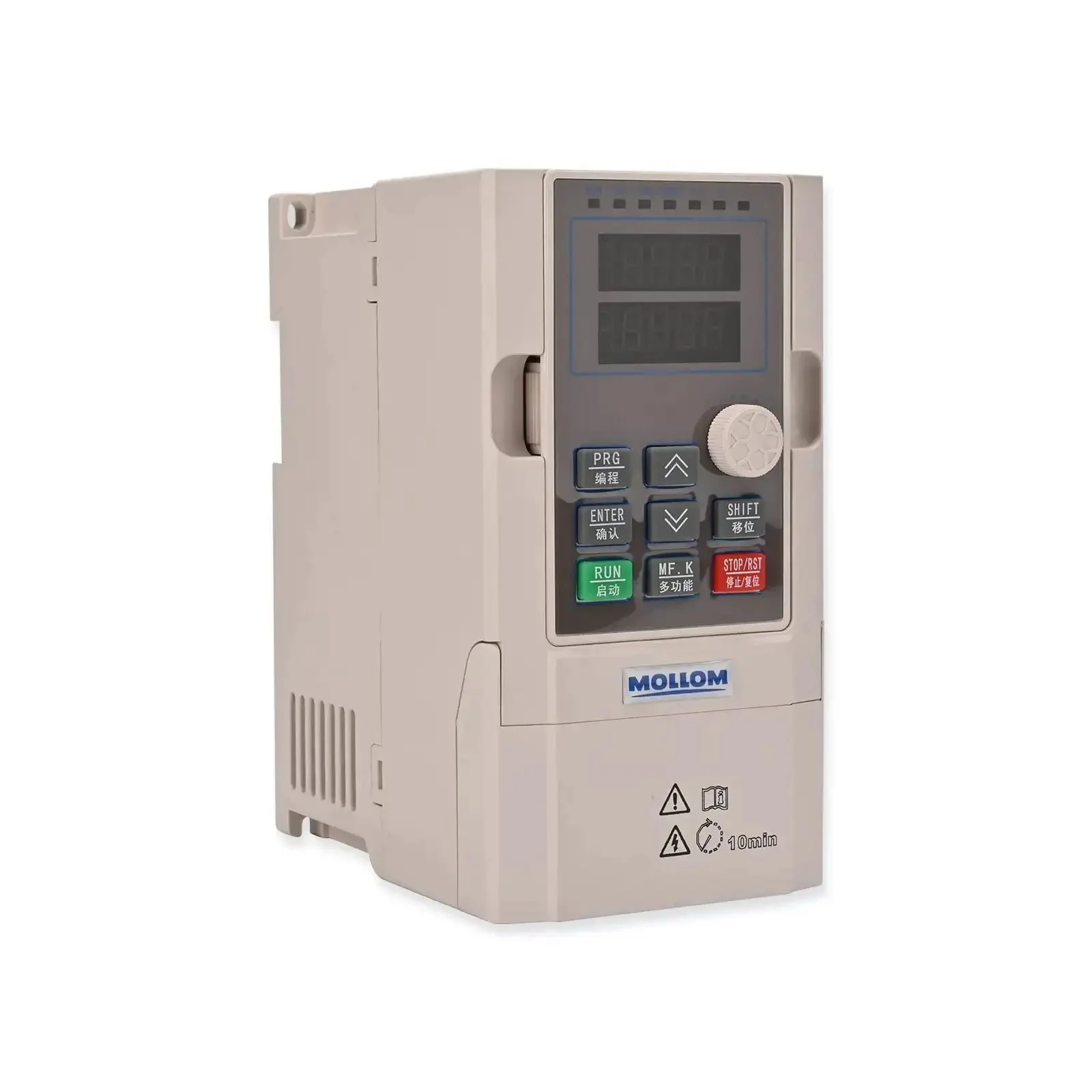

3KW VFD Variable Frequency Drive For CNC Spindle Motor Inverter 0 to 3000 Hz Output 220V 13A Single Or Three Phase Input To Three Phase Output Plug And Play Speed Control For Milling CNC Machines
✔️ 220V±15% input, single or three-phase; 0-3000 Hz output
The 3KW VFD is a variable frequency drive designed to control spindle speed on CNC milling machines and routers. It accepts 220V input and can be driven by single-phase or three-phase power, delivering a smooth three-phase output to your spindle. Features include RS485 MODBUS communication, digital and analog control terminals, and a user-friendly display for quick setup.

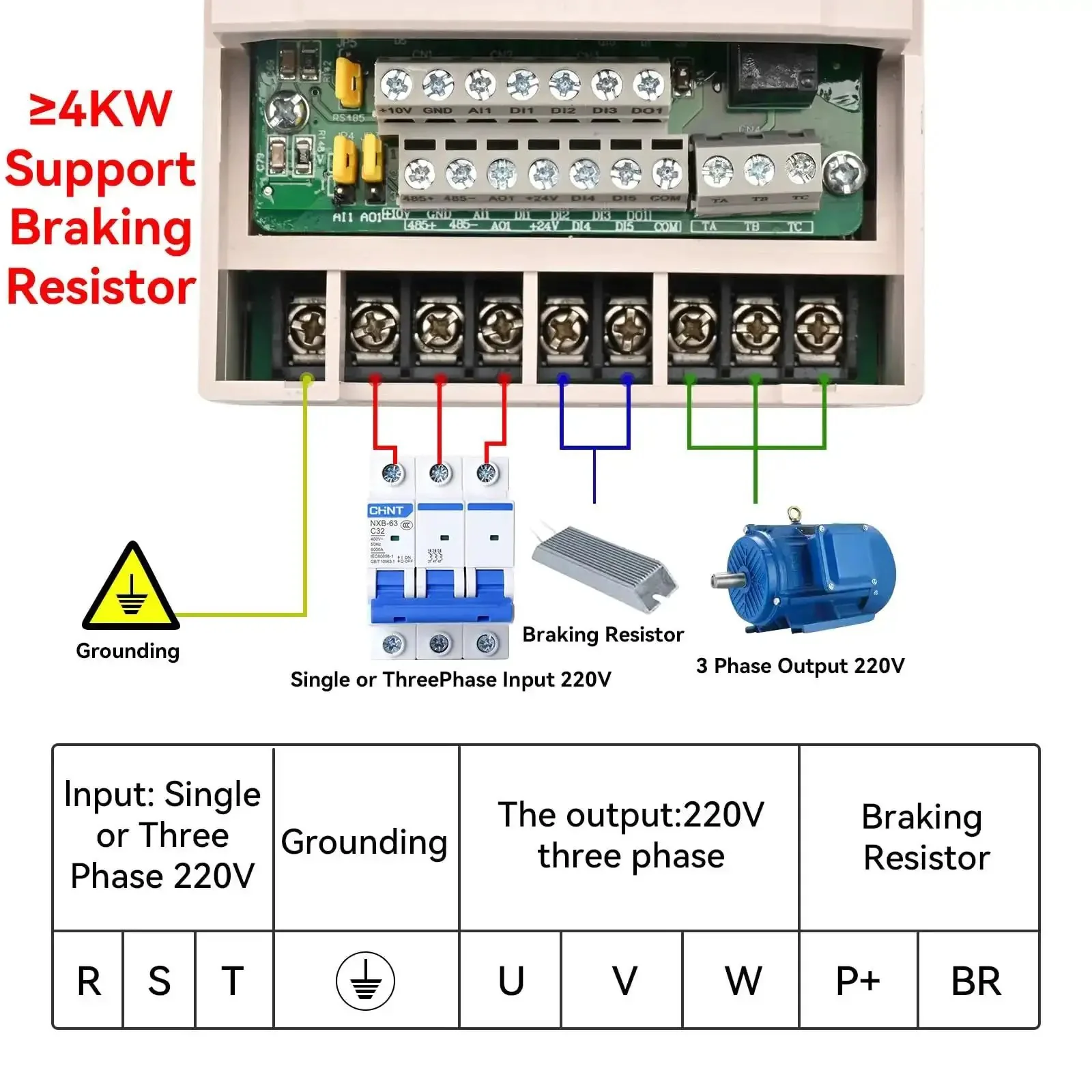

✅ Power: 3 kW output; max 13 A; 0-3000 Hz✅ Input/output: 220V ±15%; supports single or three-phase input; three-phase output
✅ Control and interface: RS485 MODBUS, digital/analog terminals

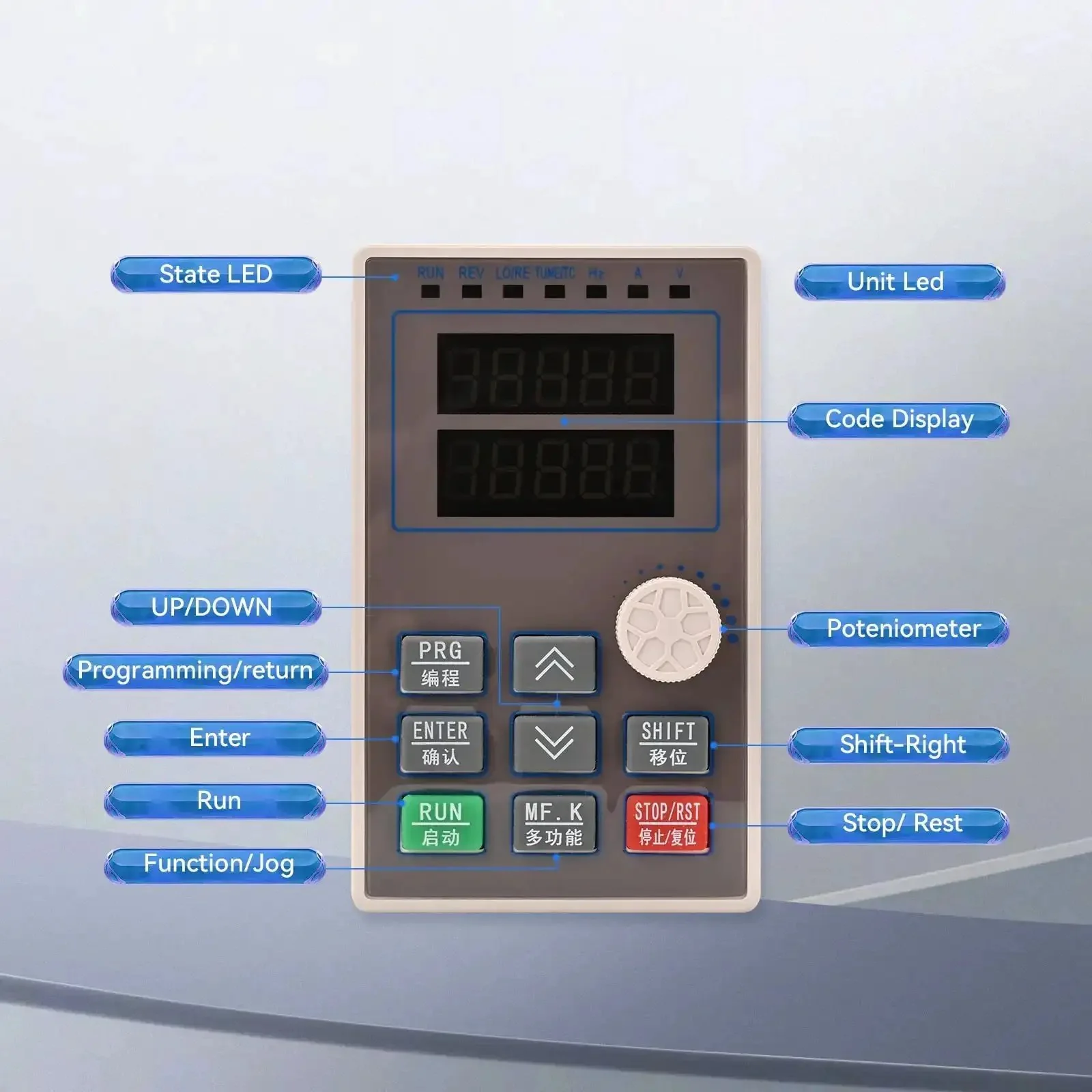

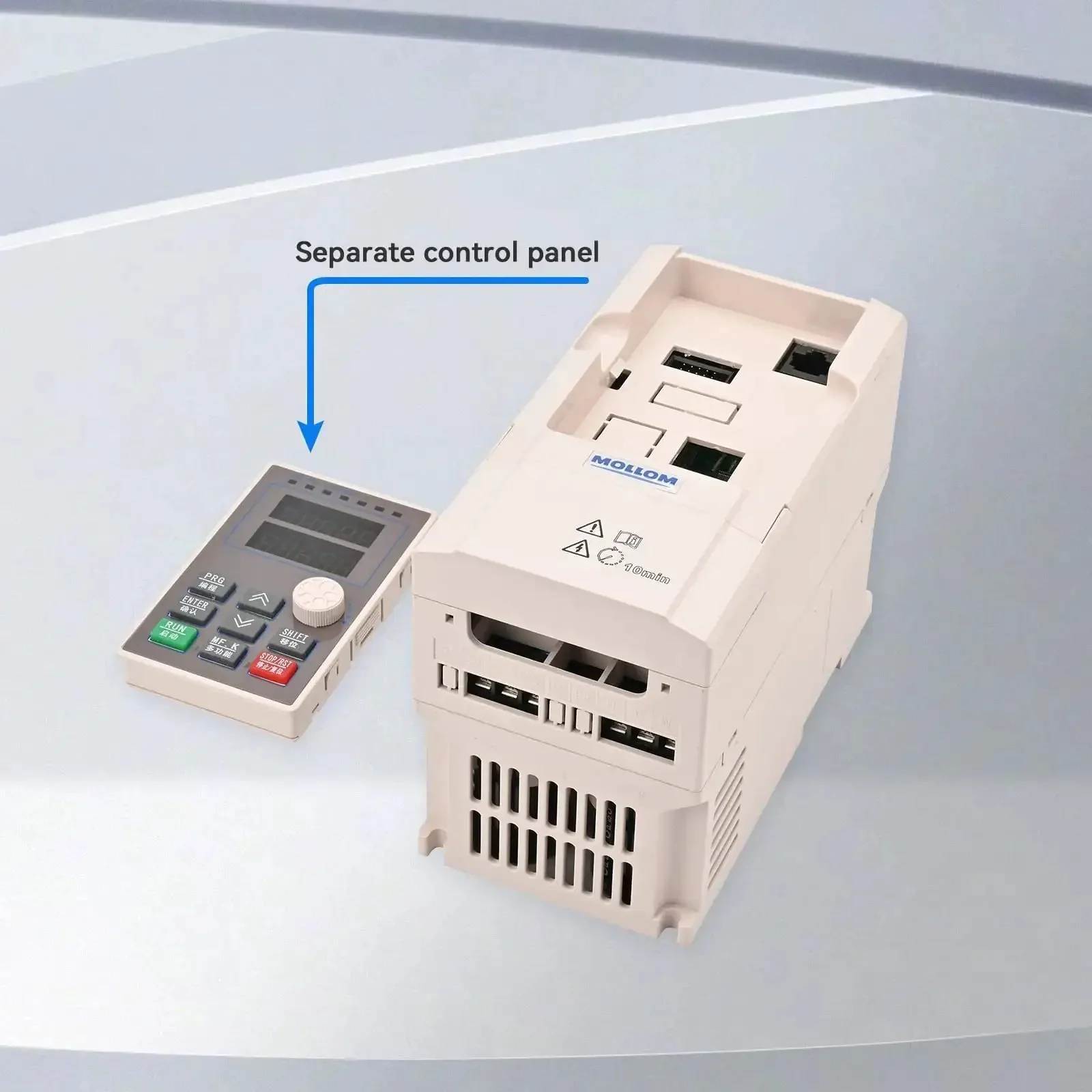

✅ Display and safety: digital readout, detachable panel for remote control; anti-jamming design
✅ Applications: CNC router, milling machine, drilling, spindles and other speed control tasks
💡 What is a VFD used for in CNC spindle systems? A handy way to control spindle speed and protect the motor while running heavy workloads.
- Provide smooth start and stop to reduce mechanical stress and inrush - Allow precise speed control from 0 to 3000 Hz to match material and tool - Easy to wire with single or three-phase power input for flexible installs - Integrates with CNC controllers via RS485 MODBUS for reliable data exchangeOriginal: $29,138.10
-65%$29,138.10
$10,198.33Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
✔️ 220V±15% input, single or three-phase; 0-3000 Hz output
The 3KW VFD is a variable frequency drive designed to control spindle speed on CNC milling machines and routers. It accepts 220V input and can be driven by single-phase or three-phase power, delivering a smooth three-phase output to your spindle. Features include RS485 MODBUS communication, digital and analog control terminals, and a user-friendly display for quick setup.
✅ Power: 3 kW output; max 13 A; 0-3000 Hz✅ Input/output: 220V ±15%; supports single or three-phase input; three-phase output
✅ Control and interface: RS485 MODBUS, digital/analog terminals
✅ Display and safety: digital readout, detachable panel for remote control; anti-jamming design
✅ Applications: CNC router, milling machine, drilling, spindles and other speed control tasks
💡 What is a VFD used for in CNC spindle systems? A handy way to control spindle speed and protect the motor while running heavy workloads.
- Provide smooth start and stop to reduce mechanical stress and inrush - Allow precise speed control from 0 to 3000 Hz to match material and tool - Easy to wire with single or three-phase power input for flexible installs - Integrates with CNC controllers via RS485 MODBUS for reliable data exchange
