1 Pole 40 Amp Heavy Duty AC Contactor With 24V Coil UL Listed Enclosed Contacts Shunt And Heavy Lug Terminals Replaces Most Residential 1 Pole Contactors Rated 20 To 40 Amps For Air Conditioners And Heat Pumps

Single Unit: 1-Pole 40A Contactor, 24V Coil UL Listed
✔️ Replaces most residential 1-pole contactors rated 20-40 A, 24 V coil

This replacement contactor is designed for HVAC outdoor units such as air conditioners and heat pumps. It combines enclosed contacts with a 24V control coil and rugged lug terminals for secure wiring in residential and light commercial installations.

✅ 40 FLA amp rating, 1 Pole with Shunt, 24 Volt Coil
✅ Enclosed contacts and encapsulated 24 Volt coil for protection
✅ Heavy lug terminals and push-Ons for high voltage connections
✅ Replaces most residential 1-Pole contactors used by Carrier, Bryant, Rheem, Lennox, Trane, and more

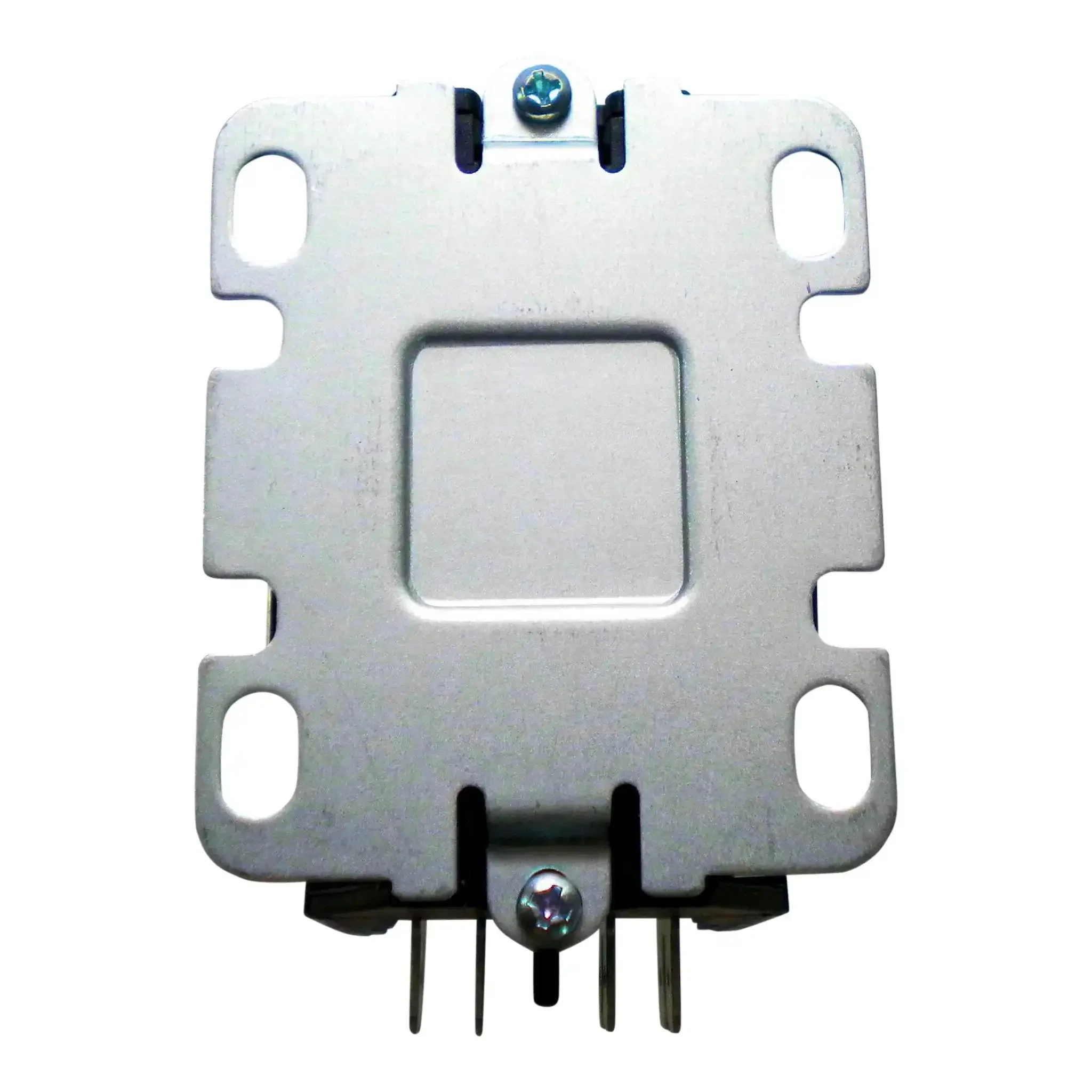

✅ Base footprint 2-5/16" x 1-15/16" with four oblong mounting holes on center 1-5/8" x 1-5/8"

💡 What is a 24V coil contactor used for in HVAC systems?

A handy control device that lets a thermostat trigger outdoor unit loads safely. - It switches compressor and condenser fan circuits
- 24V coil drives 6 VA hold and 31 VA inrush for reliable switching
- Enclosed contacts protect against dust, moisture, and insects
